Description

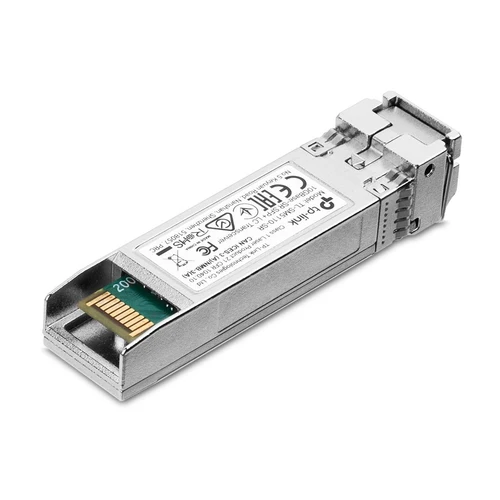

TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Introduction
The TP-Link TL-SM5110-SR is a high-performance 10GBASE-SR SFP+ transceiver designed to provide fast and reliable fiber-optic connectivity for compatible networking equipment. Operating at an 850nm wavelength, it uses multi-mode fiber to deliver 10Gbps Ethernet connections over short distances.
With support for transmission distances of up to 300 meters using suitable 50/125μm multi-mode fiber, the TL-SM5110-SR is well suited for data centers, enterprise networks, campus infrastructure, server rooms and other high-bandwidth environments.
The compact SFP+ module uses an LC duplex interface and is designed for installation in compatible 10Gbps SFP+ ports. Its hot-swappable design also makes installation and replacement convenient without requiring unnecessary network downtime.
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Price in Kenya
| Product |
Price |
| TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver |
KSh 3,500 |
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Key Specifications
| Specification |
Details |
| Model |
TP-Link TL-SM5110-SR |
| Transceiver Type |
10GBASE-SR SFP+ |
| Data Rate |
10Gbps |
| Wavelength |
850nm |
| Fiber Type |
Multi-mode Fiber |
| Supported Fiber |
50/125μm or 62.5/125μm |
| Maximum Distance |
Up to 300m with suitable 50/125μm fiber |
| 62.5/125μm Distance |
Up to approximately 33m |
| Connector |
LC Duplex / LC/UPC |
| Duplex Mode |
Full Duplex |
| Form Factor |
SFP+ |
| Standards |
IEEE 802.3ae, TCP/IP, SFF-8472 |
| DDM |
Yes |
| SFP+ MSA |
Yes |
| Hot Swappable |
Yes |
| Power Supply |
3.3V |
| Operating Temperature |
0°C to 70°C |
| Operating Humidity |
10% to 90% RH non-condensing |
| Dimensions |
Approx. 61.3 × 14.5 × 12.2mm |
| Safety & Emission |
FCC, CE |
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Performance
- Delivers up to 10Gbps Ethernet data rates, making it suitable for demanding network applications.
- Uses the 10GBASE-SR standard for short-range optical networking.
- The 850nm wavelength is optimized for multi-mode fiber connections.
- Supports full-duplex communication for simultaneous data transmission and reception.
- Can reach up to 300 meters when used with suitable 50/125μm multi-mode fiber.
- Provides a practical solution for connecting network switches, servers and other 10G-capable devices.
- DDM support allows compatible equipment to monitor important optical operating parameters.
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Build Quality & Design
- Uses a compact SFP+ module design suitable for standard compatible SFP+ slots.
- Measures approximately 61.3 × 14.5 × 12.2mm, allowing it to fit neatly into networking equipment.
- Features an LC duplex interface for fiber connectivity.
- The hot-swappable design simplifies installation, replacement and network upgrades.
- Its compact form factor makes it suitable for environments where multiple optical modules are installed close together.
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Connectivity & Compatibility
- Designed for networking equipment equipped with compatible 10Gbps SFP+ ports.
- Supports standard SFP+ MSA compatibility for flexible deployment.
- Can be used with compatible TP-Link switches and other networking equipment supporting the required 10GBASE-SR interface.
- Requires multi-mode fiber for optical connectivity.
- Works with LC duplex fiber connections.
- Suitable for short-range fiber links within buildings, server rooms, data centers and campus networks.
- Always confirm that the host device supports 10GBASE-SR and the appropriate SFP+ module specifications before installation.
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Ideal Use Cases
- Data center network connections
- Enterprise network backbones
- Server-to-switch connectivity
- Switch-to-switch fiber links
- Campus networking
- High-speed LAN infrastructure
- Short-distance 10Gbps fiber deployments
- Network upgrades from Gigabit Ethernet to 10Gbps
- Internet service provider infrastructure
- High-bandwidth business networking environments
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Pros and Cons
| Pros |
Cons |
| High-speed 10Gbps connectivity |
Requires compatible SFP+ equipment |
| Supports up to 300m on suitable multi-mode fiber |
Intended for short-range fiber links |
| 850nm wavelength |
Not designed for long-distance single-mode applications |
| LC duplex interface |
Requires appropriate multi-mode fiber cabling |
| Supports DDM |
Compatibility should be checked before deployment |
| Hot-swappable design |
SFP+ port is required |
| Compact form factor |
62.5μm fiber has a shorter supported distance |
| SFP+ MSA compatible |
Not a copper Ethernet module |
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver FAQs
What is the TP-Link TL-SM5110-SR?
- The TP-Link TL-SM5110-SR is a 10GBASE-SR SFP+ optical transceiver designed for 10Gbps Ethernet connections over multi-mode fiber.
What speed does the TP-Link TL-SM5110-SR support?
- It supports data transmission speeds of up to 10Gbps.
What wavelength does the TP-Link TL-SM5110-SR use?
- It operates at an 850nm optical wavelength.
What is the maximum distance of the TP-Link TL-SM5110-SR?
- It supports up to 300 meters with suitable 50/125μm multi-mode fiber. With 62.5/125μm fiber, the supported distance is approximately 33 meters.
What connector does the TP-Link TL-SM5110-SR use?
- It uses an LC duplex fiber connector.
Does the TP-Link TL-SM5110-SR support DDM?
- Yes. It supports Digital Diagnostic Monitoring for compatible networking equipment.
Is the TP-Link TL-SM5110-SR hot-swappable?
- Yes. Its hot-swappable design allows installation or replacement in compatible equipment with minimal disruption.
What type of fiber does the TP-Link TL-SM5110-SR require?
- It is designed for multi-mode fiber, supporting 50/125μm and 62.5/125μm fiber types.
Where can the TP-Link TL-SM5110-SR be used?
- It can be used in data centers, enterprise networks, campus networks, server rooms and other environments requiring short-distance 10Gbps fiber connectivity.
TP-Link TL-SM5110-SR 10Gbps 850nm 300m SFP+ LC Transceiver Conclusion
The TP-Link TL-SM5110-SR is a practical solution for organizations and network installers looking to establish fast 10Gbps fiber connections using compatible SFP+ networking equipment. Its 850nm 10GBASE-SR technology, multi-mode fiber support, LC duplex interface and up to 300m reach make it well suited for short-range network infrastructure.
With DDM support, SFP+ MSA compatibility and a hot-swappable design, the TL-SM5110-SR provides flexibility for network deployments and upgrades. At KSh 3,500, it is a suitable option for high-speed fiber connectivity where compatible 10G SFP+ equipment and multi-mode fiber are available.
