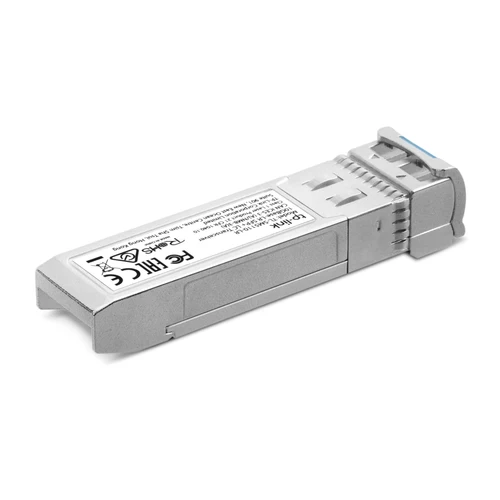

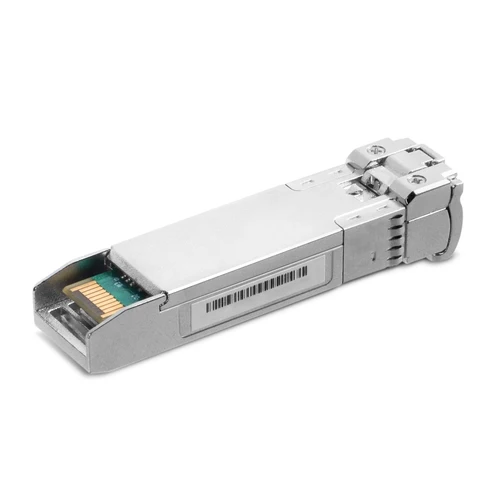

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Introduction
The TP-Link TL-SM5110-LR is a high-performance 10GBASE-LR SFP+ transceiver designed for high-speed fiber-optic networking over long distances. It provides up to 10Gbps Ethernet connectivity using 1310nm single-mode fiber technology, making it suitable for enterprise networks, data centers, campus infrastructure and building-to-building connections.
The transceiver supports transmission distances of up to 10 kilometers when used with compatible 9/125μm single-mode fiber. Its LC duplex interface provides a standard fiber connection for compatible networking equipment equipped with 10Gbps SFP+ ports.
With support for Digital Diagnostic Monitoring, SFP+ MSA and hot-swappable installation, the TL-SM5110-LR provides flexibility for professional network deployments where reliable high-speed fiber connectivity is required.
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Price in Kenya
| Product |
Price |
| TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver |
KSh 7,500 |
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Key Specifications
| Specification |
Details |
| Model |
TP-Link TL-SM5110-LR |
| Transceiver Type |
10GBASE-LR SFP+ |
| Data Rate |
10Gbps |
| Wavelength |
1310nm |
| Fiber Type |
9/125μm Single-Mode Fiber |
| Maximum Cable Length |
Up to 10km |
| Connector |
LC Duplex |
| Duplex Mode |
Full Duplex |
| Form Factor |
SFP+ |
| Standards |
IEEE 802.3ae, TCP/IP |
| DDM |
Yes |
| SFP-MSA |
Yes |
| Hot Swappable |
Yes |
| Power Supply |
3.3V |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
10% to 90% RH non-condensing |
| Storage Humidity |
5% to 90% RH non-condensing |
| Dimensions |
Approx. 56.7 × 13.9 × 10.35mm |
| Safety & Emission |
FCC, CE |
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Performance
- Provides up to 10Gbps Ethernet connectivity for high-bandwidth network applications.
- Uses 10GBASE-LR technology for long-range optical Ethernet connections.
- Operates at a 1310nm wavelength optimized for single-mode fiber.
- Supports full-duplex communication for simultaneous data transmission and reception.
- Provides up to 10km transmission distance using compatible 9/125μm single-mode fiber.
- Helps increase backbone capacity compared with conventional 1Gbps fiber connections.
- DDM support allows compatible network equipment to monitor optical operating parameters.
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Build Quality & Design
- Features a compact SFP+ module designed for compatible 10Gbps network equipment.
- Measures approximately 56.7 × 13.9 × 10.35mm.
- Uses an LC duplex interface for reliable fiber connectivity.
- Hot-swappable construction allows convenient installation and replacement.
- Compact design makes it suitable for high-density switch and server environments.
- Does not require a separate external power adapter because it receives power from the compatible SFP+ host port.
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Connectivity & Compatibility
- Designed for compatible 10Gbps SFP+ ports.
- Supports SFP+ Multi-Source Agreement for flexible deployment with compatible equipment.
- Uses single-mode fiber for long-distance optical connections.
- Requires LC duplex fiber connectivity.
- Compatible with suitable TP-Link switches and other networking equipment supporting 10GBASE-LR SFP+ modules.
- Can be deployed between switches, routers, servers and other compatible 10Gbps networking devices.
- A pair of compatible transceivers can be used to establish a fiber link between two network devices.
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Ideal Use Cases
- Enterprise network backbones
- Data center connectivity
- ISP infrastructure
- Campus network links
- Building-to-building fiber connections
- Switch-to-switch connectivity
- Server-to-switch fiber links
- Long-distance 10Gbps Ethernet connections
- High-bandwidth business networks
- Network backbone upgrades
- Fiber infrastructure deployments
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Pros and Cons
| Pros |
Cons |
| High-speed 10Gbps connectivity |
Requires compatible SFP+ equipment |
| Up to 10km transmission distance |
Requires single-mode fiber |
| 1310nm optical wavelength |
More specialized than standard copper Ethernet |
| LC duplex connector |
Not designed for short-range multimode applications |
| Supports DDM |
Host-device compatibility should be confirmed |
| SFP+ MSA compatible |
Requires suitable fiber infrastructure |
| Hot-swappable design |
Two compatible modules are normally needed for a complete link |
| Compact form factor |
SFP+ port is required |
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver FAQs
What is the TP-Link TL-SM5110-LR?
- It is a 10GBASE-LR SFP+ optical transceiver designed for 10Gbps Ethernet connectivity over single-mode fiber.
What speed does the TP-Link TL-SM5110-LR support?
- The transceiver supports data rates of up to 10Gbps.
What wavelength does the TP-Link TL-SM5110-LR use?
- It operates at a 1310nm optical wavelength.
What fiber does the TP-Link TL-SM5110-LR use?
- It is designed for 9/125μm single-mode fiber.
What is the maximum distance of the TP-Link TL-SM5110-LR?
- It supports transmission distances of up to 10 kilometers with compatible single-mode fiber.
What connector does the TP-Link TL-SM5110-LR use?
- It uses an LC duplex fiber connector.
Does the TP-Link TL-SM5110-LR support DDM?
- Yes. The module supports Digital Diagnostic Monitoring on compatible host equipment.
Is the TP-Link TL-SM5110-LR hot-swappable?
- Yes. It is designed for hot-swappable installation in compatible SFP+ equipment.
Can the TL-SM5110-LR be used with multimode fiber?
- No. The TL-SM5110-LR is designed for single-mode fiber and is intended for 10GBASE-LR applications.
Where can the TL-SM5110-LR be used?
- It is suitable for enterprise backbones, data centers, ISP networks, campus networks, server rooms and building-to-building fiber connections.
TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Conclusion
The TP-Link TL-SM5110-LR is a reliable solution for extending 10Gbps Ethernet connectivity over single-mode fiber. With its 1310nm wavelength, LC duplex interface and support for distances of up to 10km, it is designed for professional network environments requiring fast and long-distance fiber connections.
Its SFP+ MSA compatibility, DDM support and hot-swappable design make it convenient for enterprise networks, data centers, ISP infrastructure and high-capacity backbone deployments. At KSh 7,500, the TL-SM5110-LR offers a practical option for upgrading compatible networking equipment to long-range 10Gbps fiber connectivity.
