Description

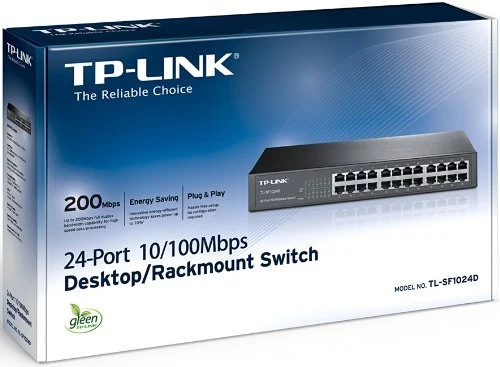

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Introduction
The TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch is an unmanaged Fast Ethernet switch designed for expanding wired network connectivity in offices schools businesses and other network environments. It provides 24 Ethernet ports that support 10Mbps and 100Mbps connections allowing multiple computers printers IP cameras and other network devices to communicate through a single network.
The TL-SF1024D is designed for easy installation with no software configuration required. Auto-Negotiation automatically detects the appropriate network speed while Auto MDI/MDIX removes the need for crossover cables. Its fanless design provides quiet operation and Green Ethernet technology helps reduce power consumption.
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Price in Kenya
| Product |
Price |
| TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch |
KSh 6,000 |
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Key Specifications
| Specification |
Details |
| Model |
TL-SF1024D |
| Switch Type |
Unmanaged Fast Ethernet Switch |
| Number of Ports |
24 |
| Port Type |
RJ45 |
| Port Speed |
10/100Mbps |
| Auto-Negotiation |
Yes |
| Auto MDI/MDIX |
Yes |
| Switching Capacity |
4.8Gbps |
| Packet Forwarding Rate |
3.57Mpps |
| MAC Address Table |
8K |
| Buffer Memory |
2Mb |
| Jumbo Frame |
2KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Green Technology |
Yes |
| Power Saving |
Up to 75% |
| Cooling |
Fanless |
| Power Supply |
100–240V AC 50/60Hz |
| Maximum Power Consumption |
3.19W |
| Dimensions |
294 × 180 × 44mm |
| Installation |
Desktop or Rackmount |
| Standards |
IEEE 802.3i 802.3u 802.3x |
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Performance
- Provides 24 Fast Ethernet ports for connecting multiple wired devices.
- Supports 10Mbps and 100Mbps network connections.
- Delivers a 4.8Gbps switching capacity for efficient traffic handling.
- Provides a 3.57Mpps packet forwarding rate.
- 8K MAC address table supports multiple connected network devices.
- IEEE 802.3x flow control helps reduce network congestion.
- Store-and-forward technology helps provide reliable packet transmission.
- Auto-Negotiation automatically adjusts each port to the appropriate network speed.
- Green Ethernet technology adjusts power usage according to network conditions.
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Build Quality & Design
- Features a durable steel case designed for professional network installations.
- Standard 13-inch form factor allows flexible desktop or rackmount deployment.
- Fanless construction provides quiet operation.
- Measures approximately 294 × 180 × 44mm.
- LED indicators provide information about power and network activity.
- Rackmount design makes it suitable for network cabinets.
- Compact construction helps organize multiple wired network connections in a single unit.
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Connectivity & Compatibility
- Provides 24× 10/100Mbps RJ45 Ethernet ports.
- Supports Auto MDI/MDIX on every port.
- Compatible with computers laptops printers servers IP cameras and other Ethernet devices.
- Can be connected to a router to expand available wired network ports.
- Supports 10BASE-T and 100BASE-TX Ethernet connections.
- Works with standard Ethernet cables suitable for Fast Ethernet networking.
- Supports IEEE 802.3i 802.3u and 802.3x standards.
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Ideal Use Cases
- Office networks
- Small business networks
- School computer laboratories
- CCTV and IP surveillance networks
- Computer workgroups
- Network printer installations
- Connecting multiple desktop computers
- Retail and business environments
- Expanding existing wired networks
- Network cabinets and structured cabling installations
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Pros and Cons
| Pros |
Cons |
| 24 Ethernet ports |
Maximum port speed is 100Mbps |
| 4.8Gbps switching capacity |
No Gigabit Ethernet |
| Rackmount and desktop installation |
No PoE support |
| Plug-and-play operation |
No advanced management features |
| Auto MDI/MDIX support |
No VLAN configuration |
| Fanless and quiet operation |
No Wi-Fi connectivity |
| Energy-efficient Green Ethernet technology |
Not suitable for networks requiring Gigabit speeds |
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch FAQs
How many ports does the TP-Link TL-SF1024D have?
- It has 24 RJ45 Ethernet ports.
What speed does the TP-Link TL-SF1024D support?
- It supports 10Mbps and 100Mbps Fast Ethernet connections.
Is the TP-Link TL-SF1024D a managed switch?
- No. It is an unmanaged switch designed for simple plug-and-play network expansion.
Does the TP-Link TL-SF1024D support Gigabit Ethernet?
- No. Its maximum port speed is 100Mbps.
Can the TP-Link TL-SF1024D be rack mounted?
- Yes. It supports rackmount installation and can also be used as a desktop switch.
Does the TP-Link TL-SF1024D support PoE?
- No. It does not provide Power over Ethernet.
What is the switching capacity of the TP-Link TL-SF1024D?
- It provides a switching capacity of up to 4.8Gbps.
Does the TP-Link TL-SF1024D require configuration?
- No. It is designed for plug-and-play operation without software configuration.
TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch Conclusion
The TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch is a practical solution for expanding wired networks that do not require Gigabit Ethernet speeds. Its 24 Ethernet ports 4.8Gbps switching capacity Auto MDI/MDIX support fanless design and energy-efficient operation make it suitable for offices schools small businesses and other network environments.
At KSh 6,000, the TP-Link TL-SF1024D provides an affordable way to add 24 Fast Ethernet connections while offering both desktop and rackmount installation options.
