Description

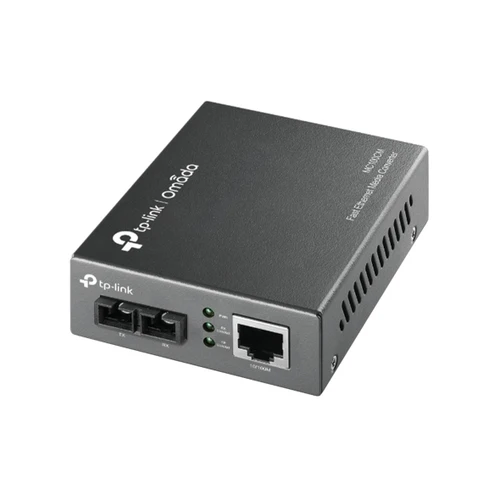

TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Introduction
The TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter is designed to connect copper Ethernet networks with multi-mode fiber optic infrastructure. It converts 100BASE-FX fiber signals to 10/100Base-TX Ethernet signals and can also convert Ethernet signals back to fiber.
This makes the TL-MC100CM useful for extending network connectivity beyond the normal distance limitations of copper Ethernet cabling. When used with compatible multi-mode fiber, it can provide transmission distances of up to 2km.
The converter features an SC fiber interface and an RJ45 Ethernet port, allowing it to connect fiber optic cabling to routers, switches, computers and other Ethernet equipment. Its automatic negotiation features simplify deployment, while LED indicators provide information about power and network activity.
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Price in Kenya
| Product |
Price |
| TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter |
KSh 4,500 |
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Key Specifications
| Specification |
Details |
| Model |
TL-MC100CM |
| Product Type |
10/100Mbps Multi-Mode Media Converter |
| Ethernet Port |
1 × 10/100Mbps RJ45 |
| Fiber Port |
1 × 100Mbps SC/UPC |
| Fiber Type |
Multi-Mode Fiber |
| Fiber Standard |
100BASE-FX |
| Ethernet Standard |
10/100Base-TX |
| Wavelength |
1310nm |
| Maximum Fiber Distance |
Up to 2km |
| Duplex Mode |
Half-Duplex / Full-Duplex |
| Auto-Negotiation |
Yes |
| Auto MDI/MDIX |
Yes |
| Flow Control |
IEEE 802.3x Full-Duplex / Backpressure Half-Duplex |
| Network Media |
Cat 3/4/5 for 10BASE-T; Cat 5/5e for 100BASE-T |
| Fiber Media |
Multi-Mode Fiber |
| LED Indicators |
PWR / Link/Act |
| Power Supply |
External Power Adapter |
| Maximum Power Consumption |
Approximately 2.4W |
| Dimensions |
95 × 73 × 27mm |
| Operating Temperature |
0°C to 40°C |
| Certification |
FCC / CE / RoHS |
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Performance
- Provides Fast Ethernet connectivity at speeds of up to 100Mbps.
- Converts copper Ethernet signals to multi-mode fiber signals for longer network runs.
- Supports fiber transmission distances of up to 2km with compatible multi-mode fiber.
- Automatic speed and duplex negotiation helps simplify network deployment.
- Full-duplex flow control helps regulate network traffic.
- Half-duplex backpressure provides additional traffic management.
- Auto MDI/MDIX simplifies connection to compatible Ethernet equipment.
- Suitable for extending networks between buildings, rooms and network infrastructure locations.
- Provides reliable Ethernet-to-fiber conversion without requiring complex network configuration.
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Build Quality & Design
- Features a compact desktop enclosure measuring approximately 95 × 73 × 27mm.
- Designed for convenient placement near Ethernet and fiber networking equipment.
- Provides clearly accessible RJ45 and SC fiber connections.
- LED indicators make it easy to monitor power and network activity.
- Uses an external power adapter for operation.
- Can operate as a standalone unit without requiring a dedicated chassis.
- Its compact construction makes it suitable for office, business and network infrastructure installations.
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Connectivity & Compatibility
- Provides one RJ45 port for 10/100Mbps Ethernet connections.
- Provides one SC/UPC fiber port for 100Mbps multi-mode fiber.
- Supports 100BASE-FX fiber and 100Base-TX copper Ethernet.
- Compatible with multi-mode fiber cabling.
- Supports transmission distances of up to 2km over suitable multi-mode fiber.
- RJ45 port supports Auto MDI/MDIX for easier Ethernet connections.
- Compatible with Ethernet switches, routers, computers and other 10/100Mbps network devices.
- Can be used as a standalone converter or with compatible TP-Link chassis systems.
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Ideal Use Cases
- Extending Ethernet networks over multi-mode fiber.
- Connecting copper Ethernet networks to fiber infrastructure.
- Office network installations.
- Campus and institutional networks.
- Connecting network equipment between different buildings.
- CCTV and surveillance network infrastructure.
- Business and telecommunications installations.
- Network upgrades where copper cabling distance is insufficient.
- Connecting switches and other Ethernet equipment through fiber.
- Long-distance Fast Ethernet connections.
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Pros and Cons
| Pros |
Cons |
| Supports 10/100Mbps Ethernet |
Maximum Ethernet speed is limited to 100Mbps |
| Supports multi-mode fiber |
Does not support single-mode fiber |
| Transmission distance up to 2km |
Requires compatible multi-mode fiber |
| SC/UPC fiber connector |
Requires compatible fiber equipment at the other end |
| Auto-Negotiation and Auto MDI/MDIX |
Not suitable for Gigabit Ethernet networks |
| Full-duplex and half-duplex support |
Requires external power |
| Compact standalone design |
Does not function as a network switch |
| LED power and Link/Act indicators |
Fiber performance depends on the connected infrastructure |
| Can be used with compatible chassis systems |
Limited management features |
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter FAQs
What does the TP-Link TL-MC100CM do?
- The TL-MC100CM converts 10/100Mbps copper Ethernet signals to 100BASE-FX multi-mode fiber signals and vice versa.
What type of fiber does the TL-MC100CM support?
- It is designed for multi-mode fiber connections using an SC/UPC connector.
What is the maximum transmission distance?
- The TL-MC100CM can extend a compatible multi-mode fiber connection up to 2km.
What Ethernet speed does the TL-MC100CM support?
- It supports 10Mbps and 100Mbps Ethernet connections.
Does the TL-MC100CM support Gigabit Ethernet?
- No. The TL-MC100CM is designed for 10/100Mbps Fast Ethernet rather than Gigabit Ethernet.
What connector does the fiber port use?
- The fiber interface uses an SC/UPC connector.
Does the TL-MC100CM support full duplex?
- Yes. It supports both half-duplex and full-duplex operation with automatic negotiation.
Does the TL-MC100CM require software configuration?
- No. Basic Ethernet-to-fiber conversion can operate without complex software configuration.
Can the TL-MC100CM be used without a chassis?
- Yes. It can operate as a standalone media converter, while compatible versions can also be used with a suitable TP-Link chassis.
TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter Conclusion
The TP-Link TL-MC100CM 10/100Mbps Multi-Mode Media Converter is a practical networking solution for connecting copper Ethernet equipment to multi-mode fiber infrastructure. With support for 10/100Mbps Ethernet, 100BASE-FX fiber and transmission distances of up to 2km, it is suitable for extending Fast Ethernet networks over longer distances.
Its SC/UPC fiber interface, RJ45 Ethernet port, Auto MDI/MDIX, duplex negotiation and compact standalone design make installation straightforward. At KSh 4,500, the TL-MC100CM is a suitable choice for businesses, offices and network installations requiring reliable 10/100Mbps Ethernet-to-multi-mode-fiber conversion.
