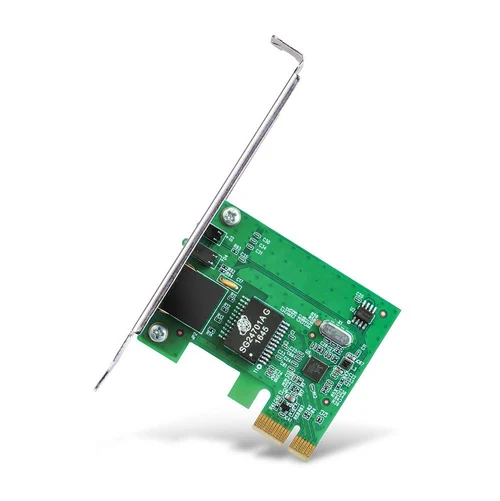

TP-Link TG-3468 Gigabit PCI Express Network Adapter Introduction
The TP-Link TG-3468 Gigabit PCI Express Network Adapter is a reliable wired networking solution designed to add high-speed Ethernet connectivity to desktop computers. It uses a PCI Express interface and provides a single RJ45 port supporting 10Mbps 100Mbps and Gigabit 1000Mbps network connections.
The adapter is designed for users who need a stable wired connection for internet access file sharing streaming gaming and other network-intensive activities. Its Auto-Negotiation and Auto MDI/MDIX features simplify network setup while IEEE 802.3x flow control helps manage data transmission efficiently.
The TG-3468 also supports Wake-on-LAN and comes with both a standard bracket and a low-profile bracket, making it suitable for a range of desktop computer configurations.
TP-Link TG-3468 Gigabit PCI Express Network Adapter Price in Kenya
| Product |
Price |
| TP-Link TG-3468 Gigabit PCI Express Network Adapter |
KSh 1,800 |
TP-Link TG-3468 Gigabit PCI Express Network Adapter Key Specifications
| Specification |
Details |
| Model |
TG-3468 |
| Network Type |
Gigabit Ethernet |
| Interface |
32-bit PCI Express |
| Ethernet Port |
1 × 10/100/1000Mbps RJ45 |
| Data Rates |
10/100/1000Mbps Half-Duplex |
| Full-Duplex Rates |
20/200/2000Mbps |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x |
| Flow Control |
IEEE 802.3x Full-Duplex |
| Auto-Negotiation |
Yes |
| Auto MDI/MDIX |
Yes |
| Wake-on-LAN |
Yes |
| Network Media |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Maximum Cable Distance |
Up to 100m |
| Dimensions |
78.5 × 120.8 × 21.5mm |
| Bracket |
Standard and Low-Profile |
| Operating System |
Windows 11/10/8.1/8/7 and supported versions |
| Certification |
FCC CE RoHS |
TP-Link TG-3468 Gigabit PCI Express Network Adapter Performance
- Provides wired network speeds of up to 1000Mbps when connected to compatible Gigabit equipment.
- Supports automatic speed selection between 10Mbps 100Mbps and 1000Mbps.
- Full-duplex operation allows simultaneous transmission and reception of network data.
- IEEE 802.3x flow control helps regulate network traffic.
- Gigabit connectivity is suitable for large file transfers and high-speed local networking.
- Provides a more consistent wired connection compared with wireless networking in many desktop environments.
- Suitable for streaming online gaming video conferencing and business applications.
TP-Link TG-3468 Gigabit PCI Express Network Adapter Build Quality & Design
- Designed as an internal PCI Express expansion card for desktop computers.
- Compact dimensions allow installation in a wide range of desktop systems.
- Features a standard mounting bracket for conventional desktop cases.
- Includes a low-profile bracket for compatible mini-tower computer cases.
- The RJ45 Ethernet port provides a standard connection for Ethernet cables.
- LED status indicators provide convenient information about network activity and connection status.
TP-Link TG-3468 Gigabit PCI Express Network Adapter Connectivity & Compatibility
- Connects directly to a compatible PCI Express slot on a desktop motherboard.
- Provides one RJ45 Gigabit Ethernet port.
- Supports 10BASE-T 100BASE-TX and 1000BASE-T network connections.
- Supports Auto-Negotiation for automatic network speed selection.
- Auto MDI/MDIX helps simplify Ethernet cable connections.
- Compatible with standard Ethernet network infrastructure including routers switches and network storage devices.
- Supports Windows operating systems including Windows 11 and earlier supported versions depending on hardware revision and driver availability.
TP-Link TG-3468 Gigabit PCI Express Network Adapter Ideal Use Cases
- Upgrading desktop computers to Gigabit Ethernet.
- Adding wired network connectivity to desktop PCs.
- Connecting workstations to Gigabit routers and switches.
- High-speed internet connections.
- Large file transfers across local networks.
- Network-attached storage connectivity.
- Online gaming where a stable wired connection is preferred.
- Video and media streaming.
- Home office and business networking.
- Replacing an older or faulty Ethernet adapter.
TP-Link TG-3468 Gigabit PCI Express Network Adapter Pros and Cons
| Pros |
Cons |
| Gigabit Ethernet speeds up to 1000Mbps |
Wired connection only |
| Supports 10/100/1000Mbps networking |
Requires an available PCI Express slot |
| Supports Wake-on-LAN |
Designed primarily for desktop computers |
| Auto-Negotiation and Auto MDI/MDIX |
Requires opening the computer case for installation |
| IEEE 802.3x full-duplex flow control |
Actual speeds depend on network equipment and cabling |
| Standard and low-profile brackets included |
Does not provide Wi-Fi or Bluetooth |
| Suitable for high-speed internet and file transfers |
Driver support may vary by operating system and hardware revision |
TP-Link TG-3468 Gigabit PCI Express Network Adapter FAQs
What is the maximum speed of the TP-Link TG-3468?
- The TG-3468 supports Gigabit Ethernet speeds of up to 1000Mbps.
Is the TP-Link TG-3468 a wireless adapter?
- No. It is a wired Ethernet adapter that connects to a network using an RJ45 Ethernet cable.
What interface does the TG-3468 use?
- It uses a 32-bit PCI Express interface for installation inside a desktop computer.
Does the TG-3468 support Wake-on-LAN?
- Yes. The adapter supports Wake-on-LAN for compatible computers and network configurations.
Does the TP-Link TG-3468 support 100Mbps connections?
- Yes. It supports 10Mbps 100Mbps and 1000Mbps Ethernet connections.
Does the TG-3468 support a low-profile computer case?
- Yes. A low-profile bracket is included for compatible mini-tower computer cases.
What type of Ethernet cable can be used with the TG-3468?
- For Gigabit Ethernet, Cat 5 or Cat 5e Ethernet cabling is supported, with a maximum cable distance of up to 100 metres under suitable conditions.
TP-Link TG-3468 Gigabit PCI Express Network Adapter Conclusion
The TP-Link TG-3468 Gigabit PCI Express Network Adapter is a practical solution for desktop users who need fast and reliable wired networking. With support for 10/100/1000Mbps Ethernet, Auto-Negotiation, Auto MDI/MDIX, full-duplex flow control and Wake-on-LAN, it provides the features needed for everyday home and business networking.
Its standard and low-profile brackets also make it flexible for installation in different desktop computer cases. At KSh 1,800, the TG-3468 is a cost-effective choice for upgrading a compatible desktop PC to Gigabit Ethernet connectivity.
