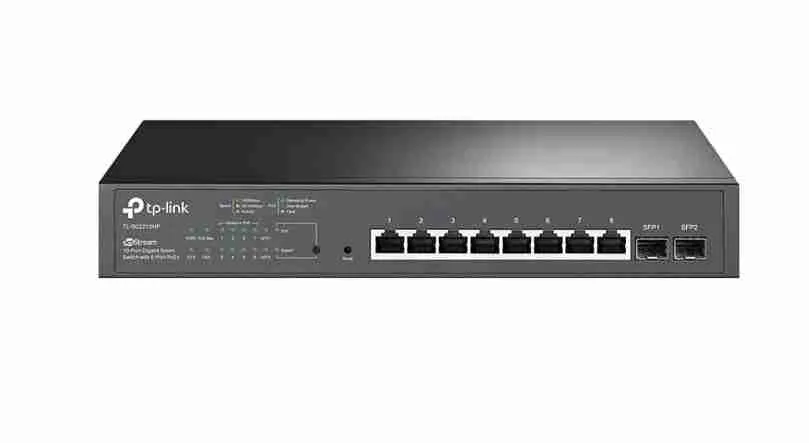

TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Introduction
The TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch is a versatile networking solution designed for businesses offices surveillance systems and professional network installations. It combines eight Gigabit PoE+ ports with two Gigabit SFP slots allowing users to connect PoE-powered devices and fiber uplinks within the same network.
With support for IEEE 802.3af/at PoE+ the switch can deliver both network data and electrical power through a single Ethernet cable to compatible IP cameras wireless access points and IP phones. It also supports advanced networking functions including VLAN ACL QoS IGMP Snooping and static routing.
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Price in Kenya
| Product |
Price |
| TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch |
KSh 13,200 |
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Key Specifications
| Specification |
Details |
| Model |
SG2210MP |
| Switch Type |
Omada Smart PoE+ Switch |
| PoE Ports |
8× Gigabit RJ45 |
| SFP Ports |
2× Gigabit SFP |
| Port Speed |
10/100/1000Mbps RJ45 |
| SFP Speed |
100/1000Mbps |
| PoE Standard |
IEEE 802.3af/at |
| PoE Output |
Up to 30W per port |
| Total PoE Budget |
150W |
| Switching Capacity |
20Gbps |
| Packet Forwarding Rate |
14.9Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1Mbit |
| Jumbo Frame |
9KB |
| VLAN |
Yes |
| QoS |
802.1p CoS/DSCP |
| IGMP Snooping |
Yes |
| ACL |
Yes |
| Static Routing |
Yes |
| Management |
Web GUI CLI SNMP RMON Omada |
| Mounting |
Desktop or Rackmount |
| Casing |
Metal |
| Dimensions |
294 × 180 × 44mm |
| Power Supply |
100–240V AC 50/60Hz |
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Performance
- Provides eight Gigabit PoE+ ports for high-speed wired networking.
- Delivers up to 30W of power per PoE+ port to compatible devices.
- Provides a total PoE budget of up to 150W.
- 20Gbps switching capacity supports efficient handling of network traffic.
- 14.9Mpps packet forwarding rate helps maintain reliable data transmission.
- Static routing allows internal network traffic to be routed more efficiently.
- QoS provides traffic prioritization for applications such as voice and video.
- IGMP Snooping helps optimize multicast traffic for IPTV and surveillance applications.
- VLAN support allows network segmentation for improved organization and security.
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Build Quality & Design
- Features a durable metal chassis designed for professional networking environments.
- Supports both desktop and rackmount installation.
- Standard 294 × 180 × 44mm dimensions fit common network cabinets.
- LED indicators provide information about power network connections and PoE activity.
- Designed for continuous operation in offices server rooms and network installations.
- Its rackmount form factor allows organized installation alongside other networking equipment.
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Connectivity & Compatibility
- Provides eight 10/100/1000Mbps Gigabit RJ45 PoE+ ports.
- Includes two Gigabit SFP slots for fiber network connections.
- Supports IEEE 802.3af and IEEE 802.3at PoE devices.
- Compatible with IP cameras wireless access points IP phones computers printers and other Ethernet devices.
- SFP ports can be used for fiber-based uplinks between network switches.
- Auto-Negotiation and Auto MDI/MDIX simplify Ethernet connections.
- Can integrate with other compatible Omada networking equipment for centralized management.
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Ideal Use Cases
- CCTV and IP surveillance systems
- Business office networks
- Wireless access point deployments
- IP telephone systems
- Schools and institutions
- Small and medium-sized businesses
- Network cabinets
- Fiber network uplinks
- Hotel and hospitality networks
- Enterprise network expansion
- Connecting PoE-powered devices
- Omada-managed network environments
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Pros and Cons
| Pros |
Cons |
| 8 Gigabit PoE+ ports |
Only 8 RJ45 ports provide PoE |
| 150W total PoE budget |
No 10Gbps ports |
| Up to 30W per PoE port |
Advanced features require configuration |
| 2 Gigabit SFP slots |
More complex than an unmanaged switch |
| 20Gbps switching capacity |
No built-in Wi-Fi |
| VLAN ACL and QoS support |
PoE budget is shared across connected devices |
| Static routing support |
Designed primarily for professional networking |
| Omada centralized management |
Requires compatible Omada ecosystem for centralized management |
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch FAQs
How many PoE ports does the TP-Link SG2210MP have?
- It has eight Gigabit PoE+ RJ45 ports.
What is the total PoE budget of the TP-Link SG2210MP?
- It provides a total PoE power budget of up to 150W.
How much power can each PoE port provide?
- Each PoE+ port can deliver up to 30W to a compatible powered device.
Does the TP-Link SG2210MP support Gigabit Ethernet?
- Yes. Its eight RJ45 ports support 10/100/1000Mbps Gigabit Ethernet.
Does the TP-Link SG2210MP have SFP ports?
- Yes. It has two Gigabit SFP slots for fiber uplink connectivity.
Can the TP-Link SG2210MP power IP cameras?
- Yes. Compatible IP cameras can receive both network data and power through the PoE+ Ethernet ports.
Can the TP-Link SG2210MP power wireless access points?
- Yes. Compatible PoE-powered access points can receive power and data through the Ethernet cable.
Does the TP-Link SG2210MP support VLAN?
- Yes. VLAN functionality is available for network segmentation and traffic management.
Can the TP-Link SG2210MP be managed remotely?
- Yes. It supports Omada centralized management as well as standalone management through supported interfaces.
TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch Conclusion
The TP-Link SG2210MP Omada 10-Port Gigabit Smart PoE+ Switch is a powerful networking solution for users who need Gigabit connectivity PoE+ power delivery fiber uplinks and smart network management features. Its eight PoE+ ports can power IP cameras access points and IP phones while the two SFP slots provide flexible fiber connectivity.
With a 150W PoE budget 20Gbps switching capacity VLAN ACL QoS IGMP Snooping and static routing support the SG2210MP is well suited for offices surveillance systems schools and small to medium-sized business networks.
At KSh 13,200, the TP-Link SG2210MP offers a strong combination of Gigabit networking PoE+ functionality and Omada smart management capabilities.
