Description

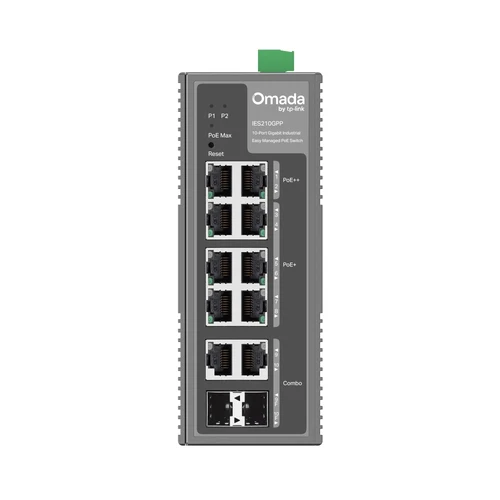

TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Introduction
The TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch is a rugged networking solution designed for industrial environments, surveillance systems, smart buildings and other installations where reliable connectivity is essential. It combines Gigabit Ethernet connectivity with PoE+ and PoE++ power delivery, allowing compatible devices to receive network data and electrical power through a single Ethernet cable.
The IES210GPP features eight Gigabit RJ45 ports and two Gigabit RJ45/SFP combo slots. Its industrial-grade aluminum enclosure, wide operating temperature range, redundant power inputs and surge protection make it suitable for demanding deployment environments.
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Price in Kenya
| Product |
Price |
| TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch |
KSh 25,000 |
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Key Specifications
| Specification |
Details |
| Switch Type |
Industrial Easy Managed Gigabit Switch |
| Gigabit RJ45 Ports |
8 |
| PoE+ Ports |
6 |
| PoE++ Ports |
2 |
| SFP/RJ45 Combo Slots |
2 |
| PoE Standard |
IEEE 802.3af/at/bt |
| PoE+ Power Per Port |
Up to 30W |
| PoE++ Power Per Port |
Up to 60W |
| Maximum PoE Budget |
Up to 240W |
| Switching Capacity |
20Gbps |
| Packet Forwarding Rate |
14.88Mpps |
| MAC Address Table |
8K |
| Packet Buffer |
4Mbit |
| Jumbo Frame |
15KB |
| Operating Temperature |
-40°C to 75°C |
| Power Input |
12–57V DC |
| Power Redundancy |
1+1 Redundant Power Input |
| Surge Protection |
6kV Ethernet / 4kV DC Input |
| Housing |
IP40 Aluminum |
| Cooling |
Fanless |
| Mounting |
DIN-Rail / Wall Mount |
| Dimensions |
155 × 120 × 60mm |
| Management |
Web / Omada App / Centralized Cloud Management |
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Performance
- 20Gbps switching capacity provides efficient handling of Gigabit network traffic.
- 14.88Mpps packet forwarding rate supports smooth data transmission across connected devices.
- Six PoE+ ports can deliver up to 30W per port to compatible equipment.
- Two PoE++ ports can provide up to 60W per port for higher-power devices.
- Up to 240W total PoE capacity allows several powered devices to operate from the same switch.
- Long-distance PoE support can extend compatible PoE connections up to 250m under supported conditions.
- VLAN and QoS features help organize and prioritize network traffic.
- STP and RSTP help improve network reliability and prevent switching loops.
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Build Quality & Design
- Rugged IP40 aluminum housing is designed for industrial installations.
- Wide -40°C to 75°C operating temperature range allows operation in demanding environments.
- Fanless design provides silent operation and reduces moving parts.
- DIN-rail mounting makes it suitable for control cabinets and industrial panels.
- Wall mounting provides an alternative installation method.
- 1+1 redundant DC power inputs improve operational reliability.
- Built-in surge protection helps protect connected network equipment against electrical disturbances.
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Connectivity & Compatibility
- Eight Gigabit RJ45 ports support high-speed Ethernet connections.
- Six ports provide PoE+ power for compatible access points, cameras and other devices.
- Two ports provide higher-power PoE++ connectivity for demanding powered devices.
- Two Gigabit combo ports can operate as RJ45 or SFP connections.
- SFP connectivity provides flexible fiber uplink options.
- Supports VLANs for network segmentation.
- Supports link aggregation for increased bandwidth and redundancy.
- QoS helps prioritize important network traffic.
- Compatible with Omada centralized management for easier monitoring and configuration.
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Ideal Use Cases
- Industrial automation networks
- CCTV and IP surveillance systems
- Smart building installations
- Factory networking
- Transportation infrastructure
- Energy and utility networks
- Outdoor and harsh-environment deployments
- Wireless access point installations
- IP camera networks
- Industrial control cabinets
- Fiber-connected industrial networks
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Pros and Cons
| Pros |
Cons |
| Rugged industrial-grade construction |
More expensive than standard business switches |
| 8 Gigabit PoE ports |
Only 10 total network interfaces |
| 2 PoE++ ports with up to 60W each |
Designed primarily for professional installations |
| Up to 240W PoE budget |
Requires DC power input |
| 2 Gigabit SFP/RJ45 combo slots |
SFP modules are purchased separately |
| -40°C to 75°C operating range |
No conventional desktop design |
| 1+1 redundant power input |
Advanced features may require networking knowledge |
| 6kV lightning protection |
|
| DIN-rail and wall mounting |
|
| Fanless operation |
|
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch FAQs
How many ports does the TP-Link IES210GPP have?
- It has 10 Gigabit interfaces consisting of 8 RJ45 ports and 2 RJ45/SFP combo slots.
Does the TP-Link IES210GPP support PoE?
- Yes. It supports PoE+, PoE++ and the IEEE 802.3af/at/bt standards.
How much power can the PoE++ ports provide?
- Each of the two PoE++ ports can provide up to 60W.
What is the total PoE budget of the IES210GPP?
- The switch can provide up to 240W of total PoE power under the specified power-input conditions.
Can the IES210GPP be used for CCTV cameras?
- Yes. Its PoE+ and PoE++ ports make it suitable for IP cameras and other surveillance equipment.
Is the TP-Link IES210GPP suitable for industrial environments?
- Yes. It has an industrial-grade aluminum housing, -40°C to 75°C operating temperature range, surge protection and redundant power inputs.
Does the IES210GPP support fiber connectivity?
- Yes. It has two Gigabit RJ45/SFP combo slots that can be used with compatible SFP modules for fiber networking.
Can the IES210GPP be mounted on a DIN rail?
- Yes. It supports DIN-rail mounting as well as wall mounting.
Is the TP-Link IES210GPP fanless?
- Yes. Its fanless design provides quiet operation and improves reliability by eliminating moving cooling components.
TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch Conclusion
The TP-Link IES210GPP Omada 10-Port Industrial Gigabit Switch is a reliable choice for demanding network installations that require Gigabit connectivity, PoE power delivery and industrial-grade protection. Its combination of six PoE+ ports, two high-power PoE++ ports, two Gigabit SFP/RJ45 combo slots and a 240W PoE budget makes it versatile for surveillance, industrial automation and smart building applications.
With its rugged IP40 aluminum housing, wide operating temperature range, redundant DC power inputs, surge protection and DIN-rail mounting, the IES210GPP is built for environments where standard office switches may not be suitable. At KSh 25,000, it offers a strong combination of industrial durability, PoE capability and managed networking features.
