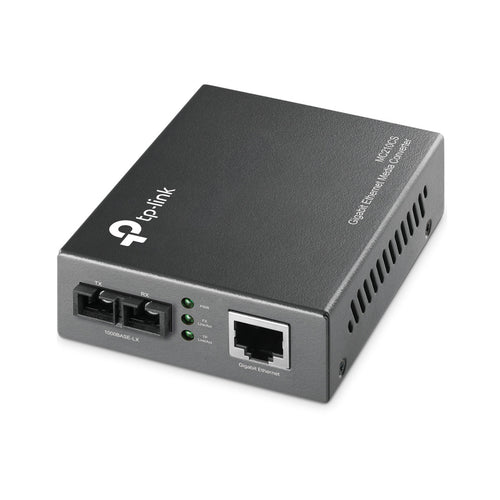

TP-Link MC210CS Gigabit Single-Mode Media Converter Introduction
The TP-Link MC210CS Gigabit Single-Mode Media Converter is a networking device designed to connect copper Gigabit Ethernet equipment with single-mode fiber infrastructure. It converts 1000BASE-LX fiber signals to 1000BASE-T copper Ethernet signals and can also perform the conversion in the opposite direction.
The MC210CS is suitable for long-distance network connections where standard copper Ethernet cabling is not sufficient. Depending on the hardware version and compatible fiber infrastructure, it can extend Gigabit network connections over single-mode fiber for distances of up to 20km.
With a Gigabit RJ45 port, SC/UPC fiber interface, Auto-Negotiation and Auto MDI/MDIX, the MC210CS provides a straightforward solution for extending wired networks between buildings, offices, server rooms and remote network locations.
TP-Link MC210CS Gigabit Single-Mode Media Converter Price in Kenya
| Product |
Price |
| TP-Link MC210CS Gigabit Single-Mode Media Converter |
KSh 7,000 |
TP-Link MC210CS Gigabit Single-Mode Media Converter Key Specifications
| Specification |
Details |
| Model |
MC210CS |
| Product Type |
Gigabit Single-Mode Media Converter |
| Fiber Port |
1 × 1000Mbps SC/UPC |
| Ethernet Port |
1 × 10/100/1000Mbps RJ45 |
| Fiber Type |
Single-Mode Fiber |
| Fiber Standard |
1000BASE-LX |
| Ethernet Standard |
1000BASE-T |
| Maximum Fiber Distance |
Up to 20km depending on hardware version |
| Wavelength |
1310nm |
| Duplex Mode |
Half-Duplex / Full-Duplex |
| Auto-Negotiation |
Yes |
| Auto MDI/MDIX |
Yes |
| Fiber Interface |
SC/UPC |
| Ethernet Cable |
Cat 5/5e UTP or 100Ω STP |
| Maximum Copper Distance |
Up to 100m |
| LED Indicators |
PWR / Link/Act |
| Power Supply |
External Power Adapter |
| Maximum Power Consumption |
1.8W |
| Dimensions |
94.5 × 73 × 27mm |
| Operating Temperature |
0°C to 40°C or 50°C depending on version |
| Certification |
FCC / CE / RoHS |
TP-Link MC210CS Gigabit Single-Mode Media Converter Performance
- Provides Gigabit Ethernet connectivity at speeds of up to 1000Mbps.
- Converts Gigabit copper Ethernet to single-mode fiber and back to copper Ethernet.
- Supports long-distance fiber transmission of up to 20km on supported hardware versions.
- Full wire-speed forwarding helps maintain efficient data transmission.
- 1310nm wavelength technology is used for the fiber connection.
- Auto-Negotiation helps automatically select the appropriate Ethernet transfer mode.
- Full-duplex operation enables simultaneous transmission and reception of data.
- Auto MDI/MDIX simplifies connections to compatible Ethernet equipment.
- Suitable for high-speed file transfers, network storage, business applications and internet connectivity.
TP-Link MC210CS Gigabit Single-Mode Media Converter Build Quality & Design
- Features a compact desktop enclosure measuring approximately 94.5 × 73 × 27mm.
- Designed for convenient installation near switches, routers and other network equipment.
- Provides separate RJ45 Ethernet and SC/UPC fiber interfaces.
- Front-panel LED indicators provide information about power and network activity.
- Uses an external power adapter.
- Can operate as a standalone unit without requiring a chassis.
- Can also be installed in a compatible TP-Link MC1400 chassis for centralized deployment.
TP-Link MC210CS Gigabit Single-Mode Media Converter Connectivity & Compatibility
- Provides one 10/100/1000Mbps RJ45 Ethernet port.
- Provides one 1000Mbps SC/UPC fiber port.
- Designed for single-mode fiber using 1000BASE-LX technology.
- Supports Gigabit Ethernet over compatible Cat 5 or Cat 5e copper cabling.
- Supports Auto MDI/MDIX for easier Ethernet connections.
- Compatible with Gigabit switches, routers, computers and other Ethernet equipment.
- Can be deployed as a standalone converter or in a compatible MC1400 chassis.
- Supports long-distance single-mode fiber links depending on the hardware version and fiber infrastructure.
TP-Link MC210CS Gigabit Single-Mode Media Converter Ideal Use Cases
- Extending Gigabit Ethernet networks over single-mode fiber.
- Connecting network equipment between different buildings.
- Business and enterprise network installations.
- Campus and institutional networks.
- Server room and data networking infrastructure.
- CCTV and surveillance network installations.
- Connecting remote offices to central network infrastructure.
- High-speed fiber links between switches.
- Network installations where copper Ethernet distance limitations are a concern.
- Converting Gigabit copper Ethernet to single-mode fiber.
TP-Link MC210CS Gigabit Single-Mode Media Converter Pros and Cons
| Pros |
Cons |
| Gigabit Ethernet speeds up to 1000Mbps |
Requires compatible single-mode fiber infrastructure |
| Supports long-distance fiber transmission |
Uses an SC/UPC fiber connection |
| Supports single-mode fiber |
Requires compatible equipment at the opposite end |
| 10/100/1000Mbps RJ45 port |
Does not function as a network switch |
| 1000Mbps SC/UPC fiber port |
Requires an external power supply |
| Auto-Negotiation and Auto MDI/MDIX |
Fiber performance depends on the connected infrastructure |
| Full-duplex operation |
Limited network management features |
| Compact standalone design |
Actual maximum fiber distance varies by hardware version |
| Compatible with MC1400 chassis |
Only one Ethernet connection is converted |
TP-Link MC210CS Gigabit Single-Mode Media Converter FAQs
What does the TP-Link MC210CS do?
- The MC210CS converts Gigabit Ethernet signals between 1000BASE-T copper Ethernet and 1000BASE-LX single-mode fiber.
What is the maximum speed of the MC210CS?
- It supports Gigabit Ethernet speeds of up to 1000Mbps.
What type of fiber does the MC210CS use?
- It is designed for single-mode fiber using an SC/UPC connector.
What is the maximum fiber transmission distance?
- Depending on the hardware version, the MC210CS can support single-mode fiber distances of up to 15km or 20km.
What wavelength does the MC210CS use?
- The MC210CS operates at a 1310nm wavelength.
Does the MC210CS support 10/100Mbps Ethernet?
- Yes. Its RJ45 port supports 10/100/1000Mbps Ethernet and can automatically negotiate the appropriate speed.
Does the MC210CS support Auto MDI/MDIX?
- Yes. The RJ45 Ethernet port supports Auto MDI/MDIX for easier network connections.
Can the MC210CS be used without a chassis?
- Yes. It can operate as a standalone media converter. It can also be installed in a compatible TP-Link MC1400 chassis.
TP-Link MC210CS Gigabit Single-Mode Media Converter Conclusion
The TP-Link MC210CS Gigabit Single-Mode Media Converter is a practical solution for extending high-speed Ethernet networks over single-mode fiber. Its 10/100/1000Mbps RJ45 port and Gigabit SC/UPC fiber interface allow copper Ethernet equipment to communicate across long-distance fiber connections.
With Gigabit performance, 1310nm operation, Auto MDI/MDIX, automatic duplex negotiation and standalone operation, it is suitable for business networks, campus infrastructure, CCTV installations and building-to-building connections. At KSh 7,000, the MC210CS is a suitable choice for reliable Gigabit Ethernet-to-single-mode-fiber conversion.
