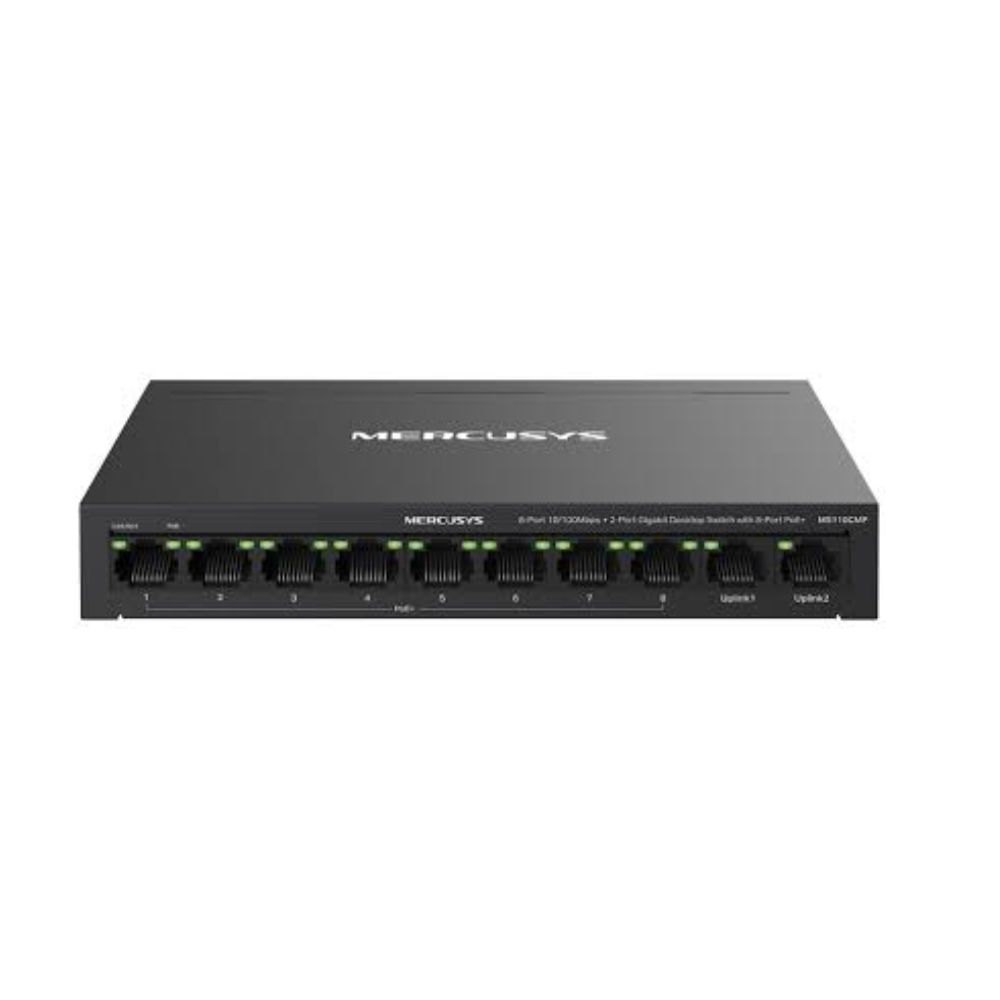

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Key Features

8 × 10/100Mbps PoE+ ports for power + data transmission
2 × Gigabit uplink ports for high-speed network backbone
Total PoE power budget up to 115W
Supports IEEE 802.3af/at PoE standards
Plug-and-play (no configuration required)
Extend mode supports PoE transmission up to 250m
Isolation mode improves security and traffic stability
Auto PoE recovery restarts unresponsive devices
Durable metal housing for heat dissipation and long-term use

Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)

Warranty Guide

Description

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Overview

The Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch is a high-capacity PoE network switch designed for CCTV systems, IP cameras, access points, and small business networks. It delivers both data and power over Ethernet (PoE), making installation simpler and reducing the need for separate power adapters.

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Price in Kenya

Product	Price (KES)
Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch	14500

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Specifications Table

Specification	Details
Brand	Mercusys
Model	MS110CMP
Ports	8 × 10/100Mbps PoE + 2 × Gigabit uplink
PoE Standard	IEEE 802.3af/at
PoE Budget	Up to 115W
Switching Capacity	5.6Gbps
Installation	Desktop / Wall mount
Mode	Unmanaged switch
Housing	Metal casing
Special Features	Extend mode, isolation mode, auto recovery

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Connectivity

The MS110CMP provides simple and efficient wired network connectivity through Ethernet cables. Each of the 8 PoE ports allows both data transfer and power delivery simultaneously, meaning devices like IP cameras or access points do not need separate power adapters.

The switch connects directly to a router or network backbone using the 2 Gigabit uplink ports, ensuring faster data transfer and stable communication between the switch and the main network.

It supports auto-negotiation and Auto MDI/MDIX, meaning no special crossover cables are required—any standard Ethernet cable works. This makes setup straightforward even for non-technical users.

For CCTV systems, the switch can extend connectivity up to 250 meters in extend mode, allowing cameras to be installed far from the main control room while still maintaining stable connectivity.

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Performance

This switch is optimized for surveillance and PoE deployments, not high-speed internet distribution. The 10/100Mbps PoE ports are sufficient for IP cameras and access points, which typically do not require gigabit bandwidth. The Gigabit uplink ports ensure smooth connection to a router or NVR for centralized data handling.

Even though it includes “Gigabit uplinks,” the main PoE ports remain limited to 100Mbps, which is intentional for stable, low-power devices like CCTV cameras.

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Design and Build

The switch has a compact metal enclosure that improves durability and heat dissipation. Its fanless design ensures silent operation, making it suitable for continuous use in offices, security rooms, or homes.

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Safety and Reliability

IEEE 802.3af/at compliant PoE ensures safe power delivery
Auto PoE recovery restarts frozen devices automatically
Isolation mode reduces network interference and improves security
Metal casing improves thermal stability and lifespan
Built for continuous 24/7 operation

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Ideal Use Cases

CCTV camera installations
IP surveillance systems (NVR setups)
Small office network expansion
IP phones and VoIP systems
Access point deployment in buildings

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Pros and Cons

Pros	Cons
Supports 8 PoE devices	PoE ports limited to 10/100Mbps
Strong 115W PoE budget	Not suitable for high-speed data networks
Plug-and-play setup	No advanced management features
Includes Gigabit uplink ports	Mainly designed for CCTV use

Mercusys MS110CMP 8-Port 10/100Mbps + 2-Port Gigabit Desktop PoE Switch Conclusion

The Mercusys MS110CMP at KES 14500 is a reliable PoE switch built specifically for CCTV and network device power distribution. While the PoE ports are limited to 100Mbps, it is intentionally designed this way because most IP cameras and security devices do not require higher speeds. It is best suited for surveillance systems and small business installations where stability and power delivery matter more than raw bandwidth.
