Stock Status:
Condition: New
SKU : 8514M42
SC/APC to SC/APC connectors provide a secure optical connection and help reduce back reflection.
Single-mode fiber is suitable for long-distance and high-bandwidth optical communication.
Duplex configuration contains two fiber strands for bidirectional communication.
5-meter length provides additional flexibility when connecting equipment, patch panels and optical distribution points.
LSZH jacket produces low smoke and no halogen gases when exposed to fire, making it suitable for many indoor installations.
9/125µm single-mode fiber is designed for reliable long-distance transmission.
APC polishing helps improve return-loss performance by reducing reflected optical energy.
Ceramic ferrules provide precise fiber alignment at the connector interface.
Suitable for FTTH, telecom networks, ODFs, patch panels, data centers and enterprise fiber infrastructure

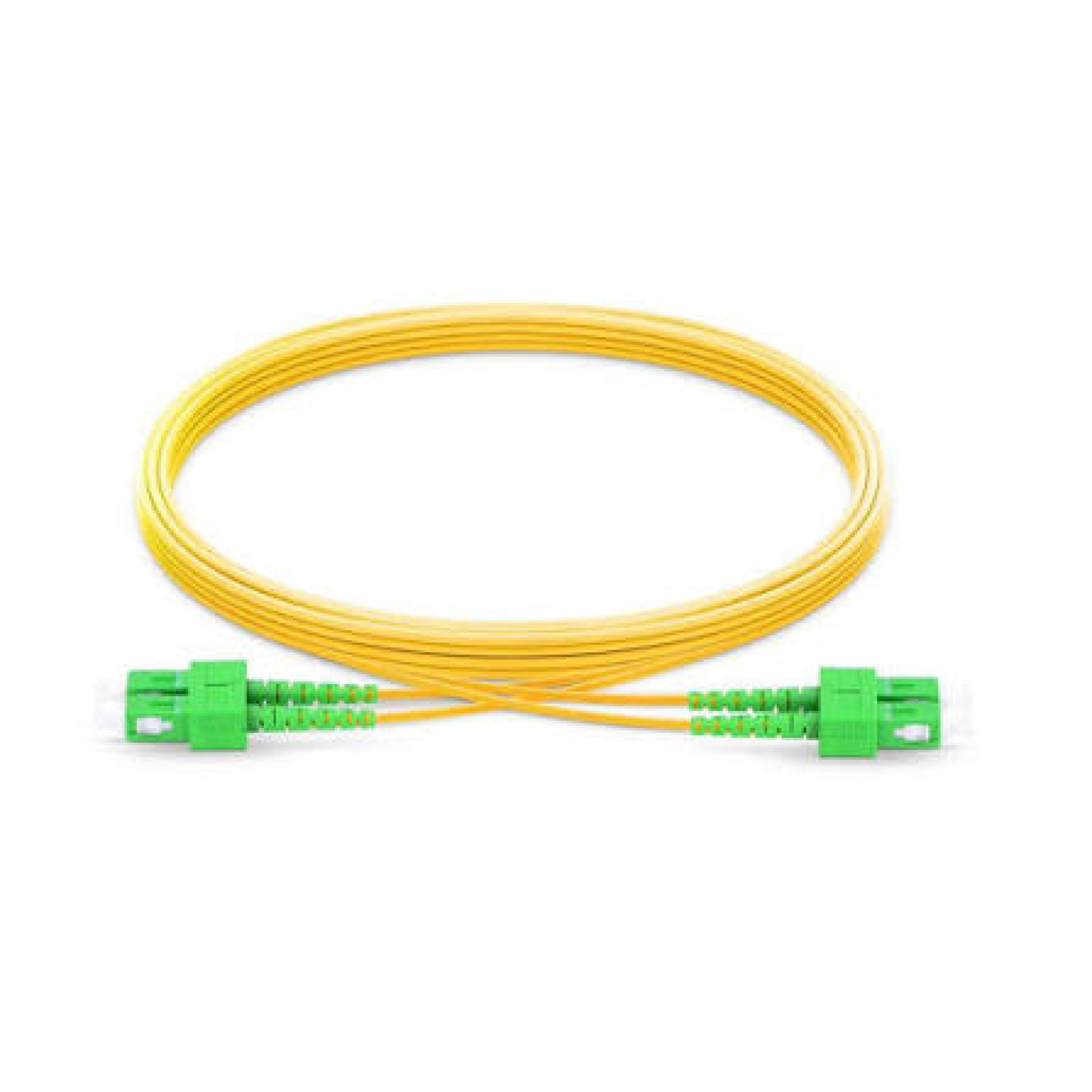

The Lightwave LW-PC-SCA-SCA-DX-SM-5M Fiber Patch Cord is a 5-meter duplex single-mode fiber cable designed for connecting compatible optical networking equipment, fiber patch panels and optical distribution frames. It uses SC/APC connectors on both ends and is suitable for applications where low optical loss and reduced back reflection are important.
Its duplex single-mode construction makes it suitable for FTTH, telecommunications, ISP infrastructure, enterprise networks and other optical communication environments. The LSZH jacket also makes the cable appropriate for many indoor networking installations where low-smoke, halogen-free cabling is preferred.
| Product | Price in Kenya |
|---|---|
| Lightwave LW-PC-SCA-SCA-DX-SM-5M Fiber Patch Cord | KSh 1,300 – KSh 6,300 |
| Specification | Details |
|---|---|
| Brand | Lightwave |
| Model | LW-PC-SCA-SCA-DX-SM-5M |
| Product Type | Fiber Optic Patch Cord |
| Fiber Type | Single Mode |
| Fiber Grade | OS2 |
| Core and Cladding | 9/125µm |
| Configuration | Duplex |
| Connector 1 | SC/APC |
| Connector 2 | SC/APC |
| Cable Length | 5 Meters |
| Jacket | LSZH |
| Outer Diameter | Approximately 3mm |
| Polish Type | APC |
| Wavelengths | 1310nm / 1550nm |
| Insertion Loss | Low |
| Return Loss | High |
| Applications | FTTH, Telecom, ODF, Patch Panels, Data Centers and Enterprise Networks |
| Connector Ferrule | Ceramic |
| Cable Type | Duplex Single-Mode Fiber |
The exact optical-loss figures can vary by production specification and supplier listing, so the supplied cable's datasheet should be checked when precise insertion-loss or return-loss values are required.
Single-mode construction supports long-distance optical transmission.
Duplex fiber allows two-way communication over the two fiber strands.
SC/APC connectors help reduce optical back reflection compared with conventional flat-polished connections.
Low insertion loss helps preserve optical signal strength between connected network components.
High return-loss characteristics contribute to stable optical communication.
The 5-meter length provides flexibility when equipment and patch panels are separated by several metres.
Suitable for high-bandwidth FTTH and telecommunications infrastructure.
Performance depends on the connected equipment, fiber cleanliness, connector condition, bend radius and installation quality.
Compact 3mm-class cable diameter makes the patch cord relatively easy to route within racks and cabinets.
LSZH outer jacket provides a low-smoke, zero-halogen cable construction.
SC connectors provide a practical push-pull connection mechanism for compatible optical equipment.
APC connector polishing helps control reflected optical signals.
Ceramic ferrules support accurate alignment between mating fiber interfaces.
Duplex construction keeps the two optical paths together for easier cable management.
The 5-meter length provides additional routing flexibility compared with shorter patch cords.
Uses SC/APC connectors at both ends.
Designed for compatible single-mode optical equipment.
Suitable for connection between SC/APC-equipped ODFs, patch panels, optical terminals and networking equipment.
Can be used in FTTH and telecom installations.
Suitable for enterprise and data-center fiber infrastructure where SC/APC connectivity is required.
Works with compatible OS2 single-mode fiber infrastructure.
Connector polish must match the equipment or adapter being connected; SC/APC should not be treated as interchangeable with SC/UPC for every application.
FTTH networks: Connecting compatible optical termination equipment and distribution points.
Telecommunications: Suitable for optical communication infrastructure.
ISP installations: Useful for fiber access and distribution networks.
ODF connectivity: Provides connections between optical distribution frames and network equipment.
Fiber patch panels: Suitable for organized optical cross-connects.
Data centers: Useful where compatible SC/APC single-mode connections are required.
Enterprise networks: Supports fiber backbone and distribution connections.
CCTV fiber networks: Can be used in compatible single-mode optical surveillance infrastructure.
What type of fiber is used in the Lightwave LW-PC-SCA-SCA-DX-SM-5M?
It uses single-mode 9/125µm fiber, commonly associated with OS2 fiber applications.
What connectors does this fiber patch cord use?
It uses SC/APC connectors on both ends, giving it an SC/APC-to-SC/APC configuration.
What does DX mean in the product model?
DX means duplex, indicating that the patch cord contains two optical fiber strands for bidirectional communication.
How long is the Lightwave LW-PC-SCA-SCA-DX-SM-5M?
The cable is 5 meters long.
What does APC mean on a fiber connector?
APC stands for Angled Physical Contact. The angled end-face helps reduce optical back reflection, making APC connections useful in applications that require improved return-loss performance.
Is this fiber patch cord suitable for FTTH?
Yes. It is designed for applications including FTTH, telecommunications and optical distribution infrastructure.
Can it be used with an SC/UPC port?
SC/APC and SC/UPC are different connector-polish types. For reliable performance, the connector polish should match the equipment and optical network design rather than assuming they are interchangeable.
Is the Lightwave LW-PC-SCA-SCA-DX-SM-5M suitable for indoor installations?
Yes. Its LSZH jacket makes it suitable for many indoor fiber-network installations where low-smoke, zero-halogen cabling is preferred.
What is the price of the Lightwave LW-PC-SCA-SCA-DX-SM-5M in Kenya?
Based on the supplied price of KSh 1,300, the listed Kenya price range is KSh 1,300 – KSh 6,300.
| Pros | Cons |
|---|---|
| SC/APC to SC/APC connectivity | Not suitable for equipment requiring LC, ST or other connector types |
| Single-mode 9/125µm fiber | APC and UPC connectors should not be mixed indiscriminately |
| Duplex design | Requires careful handling to avoid damaging the fiber |
| 5-meter length | 5m may be longer than necessary for very short rack connections |
| LSZH jacket | Requires compatible SC/APC ports or adapters |
| Low insertion-loss characteristics | Optical performance depends on clean connectors and proper installation |
| Suitable for FTTH and telecom applications | Not designed for direct connection to incompatible fiber interfaces |
The Lightwave LW-PC-SCA-SCA-DX-SM-5M Fiber Patch Cord is a practical 5-meter optical connectivity solution for FTTH, telecommunications, ISP, ODF, patch-panel and enterprise networking applications. Its duplex single-mode 9/125µm fiber, SC/APC connectors and LSZH jacket provide a combination of reliable optical transmission, flexible installation and suitable indoor cable safety characteristics.
