Stock Status:
Condition: New
SKU : 5621M88
24 SC simplex ports provide high-density fiber termination and connectivity.
Pre-loaded SC adapters simplify installation and reduce setup time.
19-inch rack-mount design fits standard network racks and cabinets.
1U form factor provides efficient use of rack space.
Single-mode and multi-mode fiber support offers flexibility for different optical network deployments.
Integrated splice tray supports up to 24 fusion or mechanical splices.
Built-in fiber routing and cable management helps keep fiber connections organized and protected.
Powder-coated cold-rolled steel construction provides a durable enclosure for fiber connections.
Lockable front door helps protect internal fiber connections from unauthorized access.
Low insertion loss helps maintain optical signal quality across connected fiber links.

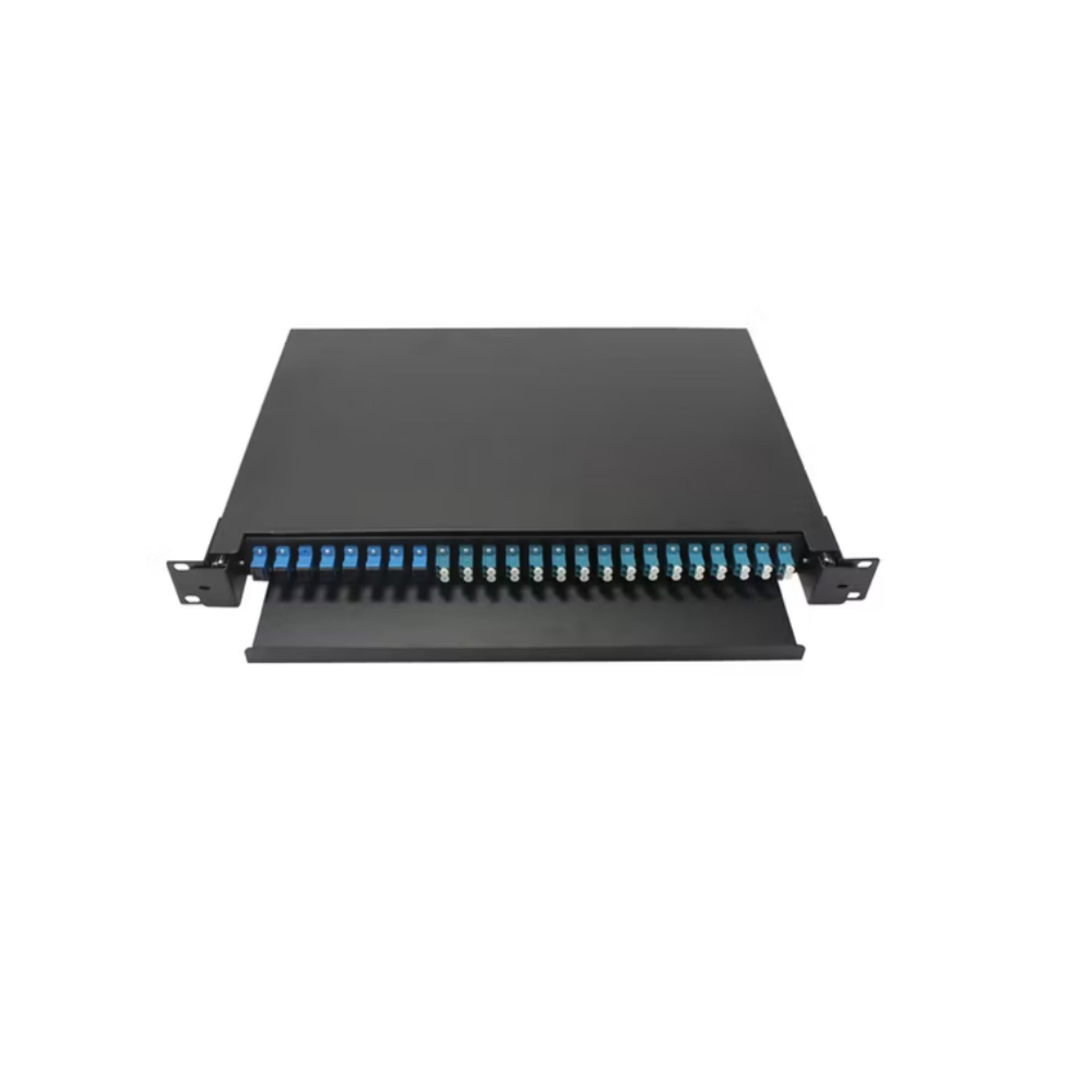

The Lightwave LW-ODF-24SC-Load-RM Fiber Patch Panel is a 24-port rack-mountable fiber distribution and management unit designed for organized termination, splicing and connection of optical fiber cables. Its 1U 19-inch rack format makes it suitable for network cabinets, telecom rooms, data centers, enterprise networks and FTTH infrastructure.
The panel comes loaded with SC adapters and incorporates a splice tray and fiber-routing features to help keep connections organized. It supports both single-mode and multi-mode fiber, making it suitable for a range of optical networking installations.
| Product | Price in Kenya |
|---|---|
| Lightwave LW-ODF-24SC-Load-RM Fiber Patch Panel | KSh 7,500 – KSh 12,500 |
| Specification | Details |
|---|---|
| Brand | Lightwave |
| Model | LW-ODF-24SC-LOAD-RM |
| Product Type | Fiber Optic Patch Panel |
| Port Capacity | 24 SC simplex ports |
| Adapter Type | SC |
| Fiber Support | Single-mode and multi-mode |
| Rack Size | 19-inch |
| Rack Height | 1U |
| Mounting Type | Rack mount |
| Splice Capacity | Up to 24 fusion or mechanical splices |
| Material | Powder-coated cold-rolled steel |
| Cable Management | Integrated fiber routing and splice tray |
| Insertion Loss | Less than 0.2 dB |
| Return Loss | PC >40 dB, UPC >50 dB, APC >60 dB |
| Dimensions | Approximately 482 × 44 × 230 mm |
| Weight | Approximately 3.5 kg unloaded |
| Operating Temperature | Approximately -5°C to +60°C |
| Operating Humidity | Up to 90% non-condensing |
| Front Access | Lockable front door |
| Compliance | RoHS, TIA/EIA 568 standards |
Specifications are based primarily on the detailed Kenya listing for this model; dimensions may differ slightly between listings or versions.
Provides organized termination for up to 24 SC fiber connections.
Supports both single-mode and multi-mode optical fiber.
Low adapter insertion loss helps minimize optical signal loss.
Integrated splice management helps protect and organize fiber splices.
Fiber routing features help reduce unnecessary cable stress and bending.
The high-density 1U design allows multiple fiber connections without occupying excessive rack space.
Suitable for structured optical networks requiring centralized fiber termination and distribution.
Built with powder-coated cold-rolled steel for durability.
Standard 1U construction allows installation in 19-inch network cabinets.
Integrated cable-management features help maintain a neat installation.
Splice tray provides a dedicated area for fiber splicing and routing.
Lockable front access provides additional protection for fiber connections.
Compact rack-mount construction is suitable for professional telecom and networking environments.
Designed to protect sensitive optical connections from unnecessary physical strain.
Provides 24 SC simplex fiber ports.
Supports compatible SC single-mode and multi-mode fiber connections.
Designed for installation in standard 19-inch racks and cabinets.
Can be integrated into FTTH, ISP, telecom, enterprise and data-center fiber infrastructure.
Suitable for fiber cables requiring termination, splicing and organized distribution.
Compatible with appropriate SC fiber patch cords, pigtails, splice components and optical distribution equipment.
The specific connector polish and fiber type should be matched with the connected optical equipment.
FTTH networks: Organizing fiber connections in Fiber-to-the-Home installations.
ISP infrastructure: Suitable for centralized fiber distribution and termination.
Telecom rooms: Provides structured management of optical connections.
Data centers: Useful where high-density fiber termination is required.
Enterprise networks: Helps organize fiber backbone and distribution links.
Structured cabling: Supports professional fiber termination and cable management.
Network cabinets: The 1U rack format maximizes available cabinet space.
Fiber distribution points: Provides centralized access to multiple SC optical connections.
How many ports does the Lightwave LW-ODF-24SC-Load-RM have?
It provides 24 SC simplex fiber ports.
Is the Lightwave LW-ODF-24SC-Load-RM rack mountable?
Yes. It is designed for standard 19-inch racks and occupies approximately 1U of rack space.
Does the patch panel support single-mode fiber?
Yes. The panel supports both single-mode and multi-mode fiber.
What connector does the Lightwave LW-ODF-24SC-Load-RM use?
It uses SC simplex adapters, with 24 ports available for fiber connections.
Does it include a splice tray?
Yes. The unit includes an integrated splice tray capable of supporting up to 24 fusion or mechanical splices.
What is the main purpose of a fiber patch panel?
It provides a centralized point for fiber termination, splicing, connection and cable management, making optical infrastructure easier to organize, maintain and troubleshoot.
Where can the Lightwave LW-ODF-24SC-Load-RM be used?
It is suitable for FTTH, ISP, telecommunications, enterprise networking, data centers and structured fiber installations.
What is the price of the Lightwave LW-ODF-24SC-Load-RM in Kenya?
Based on the supplied price of KSh 7,500, the listed price range is KSh 7,500 – KSh 12,500.
| Pros | Cons |
|---|---|
| 24 SC simplex ports | Occupies rack space compared with smaller wall-mounted units |
| 1U 19-inch rack-mount design | SC connectors may not suit installations standardized on LC |
| Supports single-mode and multi-mode fiber | Requires proper fiber termination and splicing skills |
| Integrated splice tray | Physical installation requires suitable rack or cabinet |
| Durable steel construction | Exact dimensions may vary slightly by version |
| Organized cable routing | Fiber connections still require careful bend-radius management |
| Lockable front access | Designed primarily for structured fiber installations rather than standalone use |
The Lightwave LW-ODF-24SC-Load-RM Fiber Patch Panel is a practical high-density fiber management solution for professional networking and telecommunications installations. With 24 SC simplex ports, a 1U 19-inch rack-mount design, integrated splice management and support for single-mode and multi-mode fiber, it provides an organized platform for fiber termination and distribution.
