Stock Status:
Condition: New
SKU : 9691M44
Brand – Grandstream
Model – GWN7660ELR
Type – Long-Range Outdoor Wi-Fi Access Point
Wi-Fi Standard – Wi-Fi 6 (802.11ax)
Wireless Technology – Dual-Band 2×2:2 MIMO
Aggregate Wireless Throughput – Up to 3Gbps
2.4GHz Throughput – Up to 573.5Mbps
5GHz Throughput – Up to 2.4Gbps
Coverage Range – Up to 300 Meters
Concurrent Clients – Up to 256
Ethernet Port – 1 × Gigabit RJ45
SFP Port – 1 × 2.5Gbps
Antennas – 5 Internal Antennas
PoE – 802.3af/802.3at
Maximum Power Consumption – 13W
Weatherproof Rating – IP68

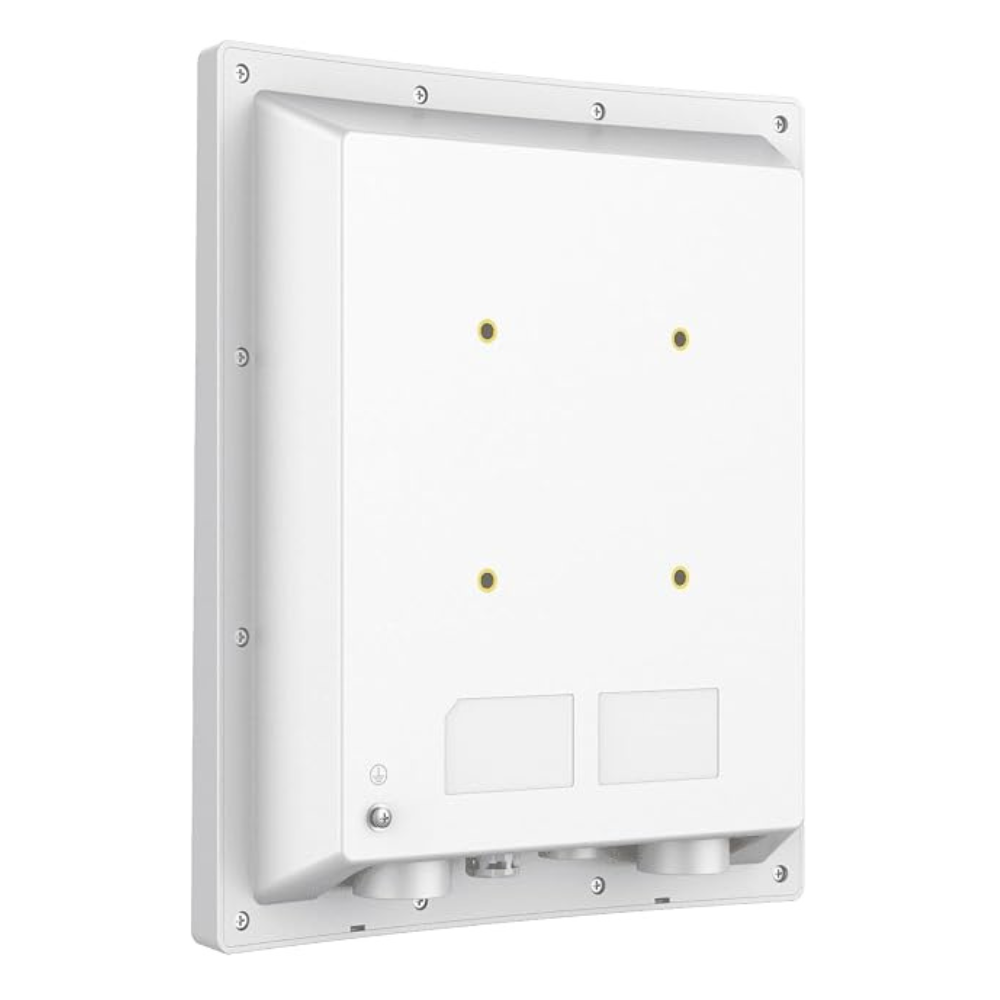

The Grandstream GWN7660ELR Access Point is an enterprise-grade long-range Wi-Fi 6 access point designed for demanding indoor and outdoor wireless deployments. It delivers up to 3Gbps aggregate wireless throughput, supports up to 256 concurrent Wi-Fi clients and provides coverage of up to 300 meters. With dual-band 2×2:2 MIMO, OFDMA, a 1Gbps RJ45 port, 2.5Gbps SFP port, PoE/PoE+ support and IP68 weatherproofing, it is well suited to offices, warehouses, schools, hospitals, campuses and other large-area wireless networks.
| Product | Price Range in Kenya |
|---|---|
| Grandstream GWN7660ELR Access Point | KSh 13,500 – 17,000 |
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | GWN7660ELR |
| Type | Long-Range Outdoor Wi-Fi Access Point |
| Wi-Fi Standard | IEEE 802.11b/g/n/ac/ax |
| Wi-Fi Generation | Wi-Fi 6 |
| Frequency Bands | 2.4GHz & 5GHz |
| MIMO | Dual-Band 2×2:2 |
| 2.4GHz Throughput | 573.5Mbps |
| 5GHz Throughput | 2.4Gbps |
| Aggregate Wireless Throughput | Up to 3Gbps |
| Coverage Range | Up to 300m |
| Concurrent Clients | Up to 256 |
| Ethernet Interface | 1 × 1Gbps RJ45 |
| SFP Interface | 1 × 2.5Gbps SFP |
| Antennas | 5 Internal |
| PoE Standard | 802.3af/802.3at |
| Maximum Power Consumption | 13W |
| Weatherproof Rating | IP68 |
| SSIDs | 32 Total, 16 Per Radio |
| Security | WPA/WPA2, WPA3 |
| Management | Embedded Controller, GDMS Networking, GWN Manager |
| Mounting | Wall or Pole |
| Dimensions | 270 × 230 × 57mm |
| Operating Temperature | -30°C to 60°C |
Specifications are based on Grandstream's official product information and datasheet.
3Gbps Aggregate Wireless Throughput: The GWN7660ELR combines up to 573.5Mbps on 2.4GHz with up to 2.4Gbps on 5GHz, providing substantial wireless capacity for business and enterprise environments.
Wi-Fi 6 Connectivity: Wi-Fi 6 technology with 2×2:2 MIMO and OFDMA improves network efficiency when multiple compatible devices are connected simultaneously.
300-Meter Long-Range Coverage: The access point is designed to provide coverage of up to 300 meters, making it suitable for large compounds, campuses, warehouses and outdoor commercial areas.
256 Concurrent Clients: Support for up to 256 concurrent Wi-Fi clients allows the access point to serve a substantial number of users and connected devices in demanding deployments.
IP68 Weatherproof Construction: The IP68-rated design provides strong protection against dust and water ingress, making the access point suitable for demanding outdoor installations.
2.5Gbps SFP Connectivity: A 2.5Gbps SFP interface provides a high-speed fiber connectivity option for installations requiring more than conventional Gigabit Ethernet.
Gigabit Ethernet Port: The 1Gbps RJ45 interface provides wired network connectivity and supports PoE/PoE+ power delivery.
Five Internal Antennas: The five internal antennas are designed to support the access point's long-range wireless performance while maintaining a weather-resistant enclosure.
Enterprise Wi-Fi Networks: Suitable for businesses requiring reliable, high-capacity wireless connectivity across large facilities.
Outdoor Campus Networks: The extended coverage makes it useful for schools, universities, corporate campuses and institutional compounds.
Warehouse Connectivity: Can provide wireless access across large warehouse and industrial environments where broad coverage is important.
Hospital and Healthcare Networks: Suitable for outdoor and large-area wireless deployments around healthcare facilities.
Commercial Outdoor Wi-Fi: Can be deployed around commercial buildings, compounds and other outdoor areas requiring managed wireless connectivity.
Centralized Network Management: The built-in controller can manage up to 50 local GWN access points, while GDMS Networking and GWN Manager provide cloud and on-premises management options.
| Pros | Cons |
|---|---|
| Wi-Fi 6 technology | Actual coverage varies with environment |
| Up to 3Gbps aggregate wireless throughput | 2×2:2 MIMO configuration |
| Up to 300m coverage | Requires suitable PoE/PoE+ infrastructure |
| Supports up to 256 clients | Higher-end features may exceed small network requirements |
| 2.5Gbps SFP connectivity | Outdoor installation requires appropriate positioning |
| IP68 weatherproof design | More specialized than standard indoor access points |
The Grandstream GWN7660ELR is a long-range outdoor Wi-Fi 6 access point designed for enterprise and high-density wireless deployments.
The GWN7660ELR provides a coverage range of up to 300 meters, although actual coverage depends on the environment, obstacles, interference and installation conditions.
It provides up to 3Gbps aggregate wireless throughput, with up to 573.5Mbps on 2.4GHz and 2.4Gbps on 5GHz.
The access point supports up to 256 concurrent Wi-Fi client devices.
Yes. It supports 802.3af and 802.3at PoE/PoE+ and has a maximum power consumption of 13W.
Yes. It is designed for outdoor deployment and features IP68 weatherproof and dust protection, along with an operating temperature range of -30°C to 60°C.
The Grandstream GWN7660ELR Access Point is a powerful Wi-Fi 6 solution for large-area and outdoor wireless deployments. Its 3Gbps aggregate throughput, 300-meter coverage, support for up to 256 clients, 2.5Gbps SFP connectivity, PoE/PoE+ and IP68 weatherproof design make it well suited to enterprise networks, campuses, warehouses, hospitals and commercial outdoor environments.
