Stock Status:
Condition: New
SKU : 6296M38
Brand – Grandstream
Model – GWN7630LR
Type – Long-Range Outdoor Wi-Fi Access Point
Wi-Fi Standard – 802.11ac Wave-2
Wireless Technology – Dual-Band 4×4:4 MIMO
Aggregate Wireless Throughput – Up to 2.33Gbps
2.4GHz Throughput – Up to 600Mbps
5GHz Throughput – Up to 1.733Gbps
Ethernet Ports – 2 × Gigabit
Coverage Range – Up to 300 Meters
Concurrent Clients – 250+
Antennas – 4 × Detachable/Changeable Dual-Band
PoE – 802.3af/802.3at
Maximum Power Consumption – 16.5W
Weatherproofing – IP66-Level
Mounting – Wall or Pole

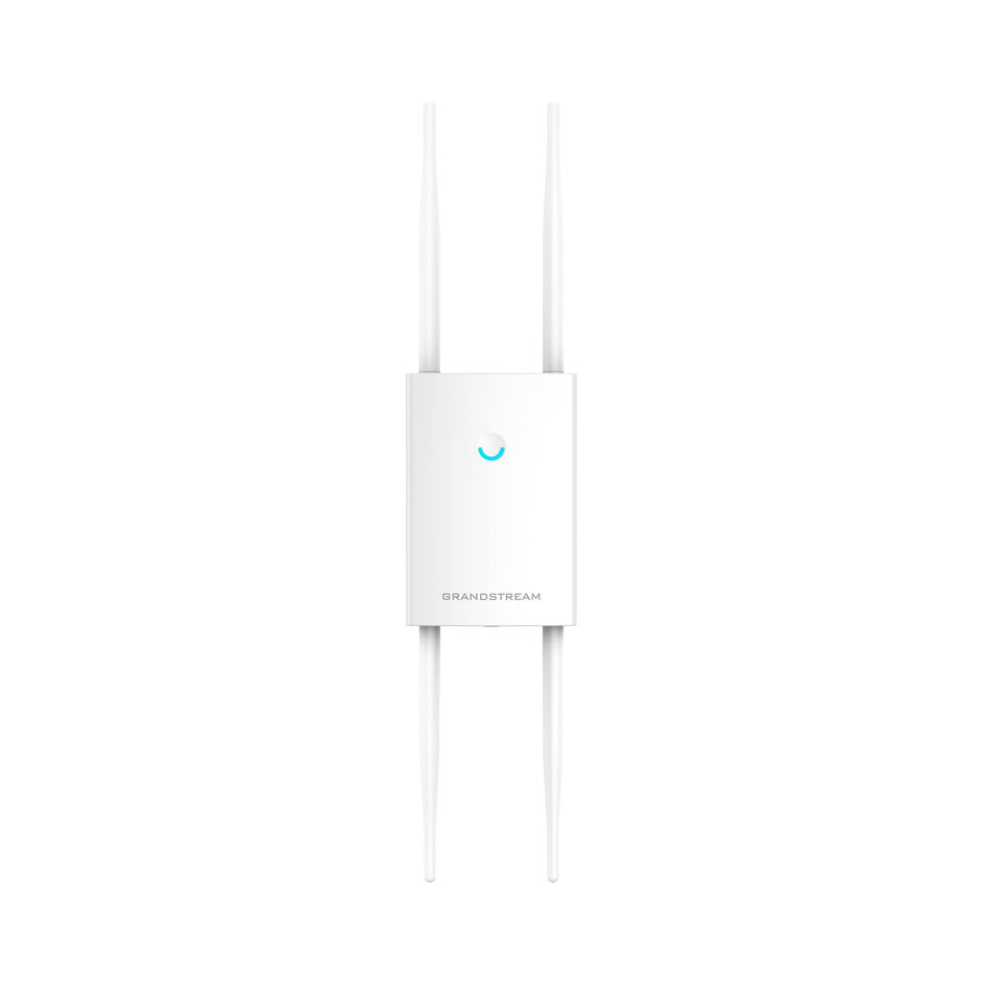

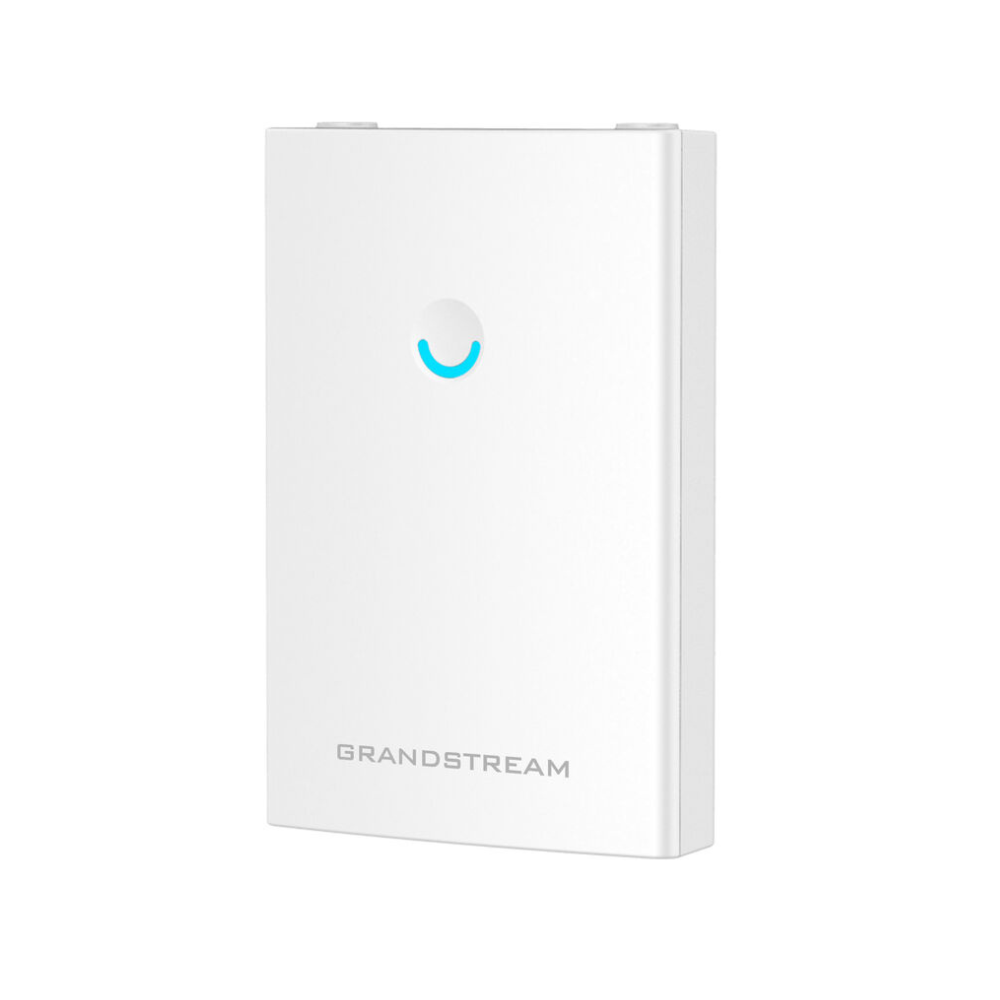

The Grandstream GWN7630LR Access Point is a high-performance dual-band 802.11ac Wave-2 long-range access point designed for medium to large business, enterprise and outdoor Wi-Fi deployments. It combines 4×4:4 MIMO technology with up to 2.33Gbps aggregate wireless throughput, coverage of up to 300 meters and support for 250+ concurrent clients. Its IP66-level weatherproof capability, four detachable antennas, dual Gigabit Ethernet ports and PoE/PoE+ support make it suitable for campuses, warehouses, offices, schools, hospitals and other demanding wireless environments.
| Product | Price Range in Kenya |
|---|---|
| Grandstream GWN7630LR Access Point | KSh 13,500 – 17,000 |
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | GWN7630LR |
| Type | Outdoor Long-Range Wi-Fi Access Point |
| Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac Wave-2 |
| Frequency Bands | 2.4GHz & 5GHz |
| MIMO | 4×4:4 |
| 2.4GHz Throughput | Up to 600Mbps |
| 5GHz Throughput | Up to 1.733Gbps |
| Aggregate Wireless Throughput | Up to 2.33Gbps |
| Ethernet Ports | 2 × 10/100/1000 Base-T |
| Coverage Range | Up to 300m |
| Concurrent Clients | 250+ |
| Antennas | 4 × Detachable/Changeable Dual-Band |
| PoE Standard | 802.3af/802.3at |
| Maximum Power Consumption | 16.5W |
| Weatherproofing | IP66-Level |
| SSIDs | 32 Total, 16 per Radio |
| Channel Bandwidth | 2.4GHz: 20/40MHz; 5GHz: 20/40/80MHz |
| Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3 |
| Management | Embedded Controller, GWN.Cloud & GWN Manager |
| Mounting | Wall or Pole |
| Dimensions | 205.3 × 205.3 × 45.9mm |
| Operating Temperature | -30°C to 60°C |
Specifications are based on Grandstream's published GWN7630LR product information and documentation.
2.33Gbps Wireless Throughput: The GWN7630LR combines 600Mbps on the 2.4GHz band and 1.733Gbps on the 5GHz band to deliver up to 2.33Gbps of aggregate wireless throughput for demanding network environments.
4×4:4 MIMO Technology: Dual-band 4×4:4 MIMO provides multiple spatial streams for improved wireless capacity and efficient communication with compatible client devices.
300-Meter Coverage: The access point is designed for extended wireless coverage of up to 300 meters, making it suitable for large properties and outdoor areas where broader coverage is required.
250+ Concurrent Clients: Support for more than 250 concurrent Wi-Fi clients makes the GWN7630LR suitable for higher-density deployments in business, institutional and commercial environments.
IP66-Level Weatherproof Capability: The GWN7630LR is designed for outdoor deployment and features weatherproof protection when installed vertically, helping it withstand demanding environmental conditions.
Four Detachable Antennas: Four detachable and changeable dual-band omnidirectional antennas provide installation flexibility for different coverage requirements.
Dual Gigabit Ethernet Ports: Two autosensing Gigabit Ethernet ports provide high-speed wired connectivity and allow the access point to integrate into existing network infrastructure.
PoE and PoE+ Support: The access point supports IEEE 802.3af and 802.3at, with automatic power adaptation to the available PoE or PoE+ source.
Enterprise Wi-Fi: Suitable for medium and large businesses requiring broad wireless coverage and support for numerous connected users.
Campus Networks: The extended coverage range makes it useful for schools, universities, corporate campuses and other large facilities.
Warehouses: Can provide wireless connectivity across large warehouse and industrial environments where conventional indoor access points may have limited coverage.
Outdoor Commercial Wi-Fi: Suitable for extending wireless access across outdoor areas surrounding offices, commercial buildings and other facilities.
Hospitality Networks: Can be deployed around hotels, resorts and other hospitality facilities requiring outdoor wireless connectivity.
Centralized Management: The embedded controller can manage up to 50 local GWN series access points, while GWN.Cloud provides cloud-based management for larger deployments.
| Pros | Cons |
|---|---|
| Up to 2.33Gbps aggregate wireless throughput | Uses older 802.11ac Wave-2 technology |
| Up to 300m coverage range | Actual range varies with environmental conditions |
| 4×4:4 MIMO technology | Requires PoE/PoE+ infrastructure or compatible power |
| Supports 250+ concurrent clients | Larger than typical indoor access points |
| IP66-level weatherproof capability | External antennas require proper installation |
| Dual Gigabit Ethernet ports | Not a Wi-Fi 6 or Wi-Fi 7 access point |
The Grandstream GWN7630LR is a dual-band 802.11ac Wave-2 4×4:4 long-range access point designed for indoor and outdoor business and enterprise Wi-Fi deployments.
The GWN7630LR supports a coverage range of up to 300 meters, although actual coverage depends on the environment, obstacles, interference and installation conditions.
It offers up to 2.33Gbps aggregate wireless throughput, with up to 600Mbps on 2.4GHz and 1.733Gbps on 5GHz.
Grandstream specifies support for 250+ concurrent Wi-Fi clients.
Yes. It supports IEEE 802.3af and 802.3at PoE/PoE+, with maximum power consumption of 16.5W.
Yes. It is designed for indoor and outdoor deployment and provides IP66-level weatherproof capability when installed vertically.
The Grandstream GWN7630LR Access Point is a high-capacity long-range wireless solution for businesses, campuses, warehouses and outdoor commercial environments. Its 4×4:4 MIMO technology, 2.33Gbps aggregate throughput, 300-meter coverage, 250+ client capacity, dual Gigabit ports and IP66-level weatherproof capability make it a strong option for large-scale Wi-Fi deployments.
